TCU Connector End View (M511)

Connector Types:  USCAR30-MC-F

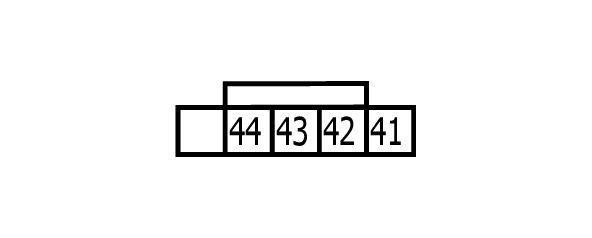

Fig 1: Terminal-side
GNSW56415Courtesy of NISSAN NORTH AMERICA

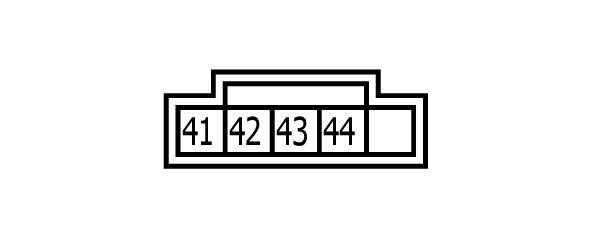

Fig 2: Harness-side
GNSW57292Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
41 R USB V BUS SIGNAL
42 P USB D- SIGNAL
43 W USB D+ SIGNAL
44 SHIELD USB GND
