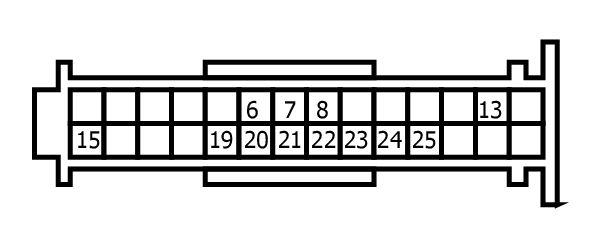

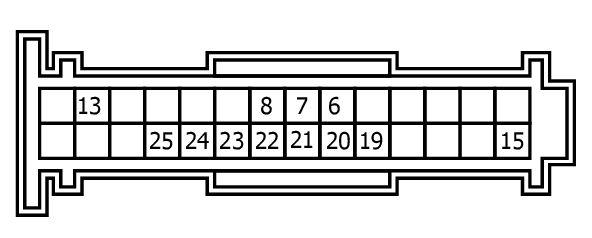

Sonar Control Unit Connector End View (M4)
Connector Types: MB_A0015403081
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 6 | L | CORNER SENSOR SIGNAL REAR LH |
| 7 | R | CENTER SENSOR SIGNAL REAR RH |
| 8 | Y | SIDE SENSOR SIGNAL REAR RH |
| 13 | BR | GROUND |
| 15 | R | BATTERY POWER SUPPLY |
| 19 | B | REAR SENSOR POWER SUPPLY |
| 20 | V | SIDE SENSOR SIGNAL REAR LH |
| 21 | W | CENTER SENSOR SIGNAL REAR LH |
| 22 | Y | CORNER SENSOR SIGNAL REAR RH |
| 23 | BR | REAR SENSOR GROUND |
| 24 | L | CAN-L |
| 25 | W | CAN-H |
