Passenger Air Bag Module Connector End View (M2)

Connector Types:  MB_A0295453026

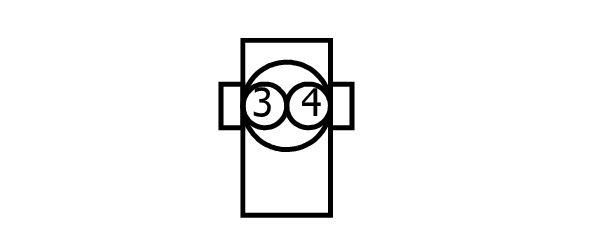

Fig 1: Terminal-side
GNSW57228Courtesy of NISSAN NORTH AMERICA

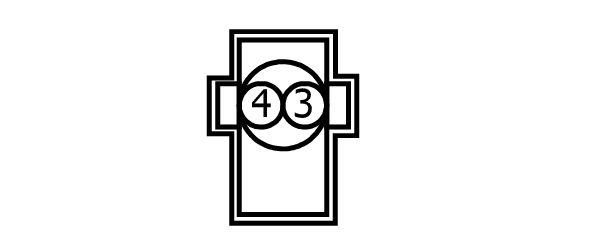

Fig 2: Harness-side
GNSW57253Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
3 B -
