NAVI Control Unit Connector End View (M395)

Connector Types:  GT5-1S-HU

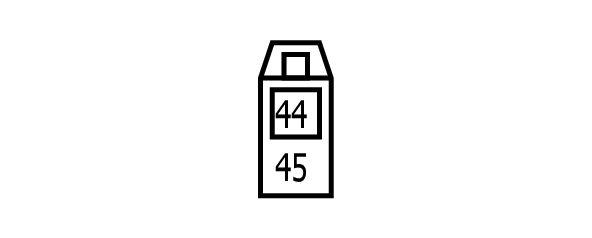

Fig 1: Terminal-side
GNSW57285Courtesy of NISSAN NORTH AMERICA

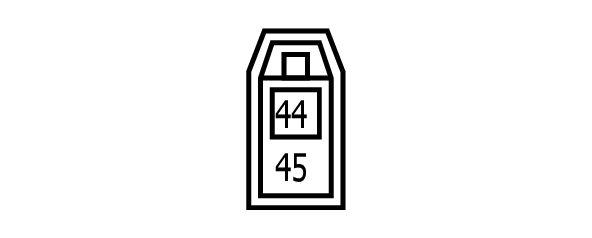

Fig 2: Harness-side
GNSW57170Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
44 - GPS ANTENNA SIGNAL
45 - SHIELD
