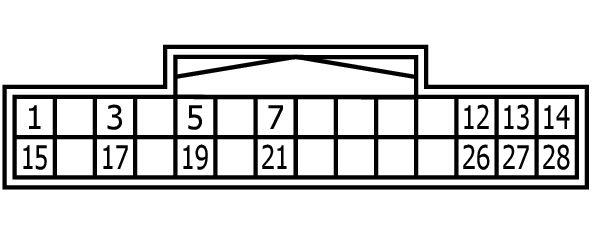

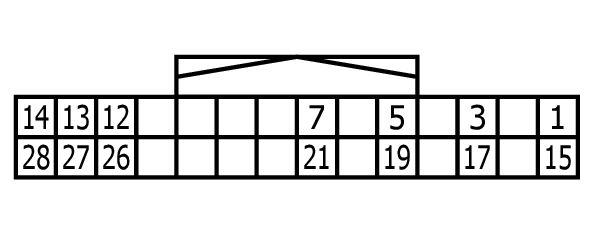

NAVI Control Unit Connector End View (M163)
Connector Types: TH28FW
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | Y | BATTERY POWER SUPPLY |
| 3 | B | GROUND |
| 5 | L | ACC POWER SUPPLY |
| 7 | O | VEHICLE SPEED SIGNAL (8-PLUSE) |
| 12 | Y | MICROPHONE SIGNAL |
| 13 | B | SHIELD |
| 14 | R | VOICE GUIDANCE SIGNAL (+) |
| 15 | Y | BATTERY POWER SUPPLY |
| 17 | B | GROUND |
| 19 | W | IGNITION SIGNAL |
| 21 | BR | REVERSE SIGNAL |
| 26 | R | MICROPHONE SIGNAL GROUND |
| 27 | B | SHIELD |
| 28 | Y | VOICE GUIDANCE SIGNAL (-) |
