Left Front Door Control Unit Connector End View (D15)

Connector Types:  MB_A0055403481

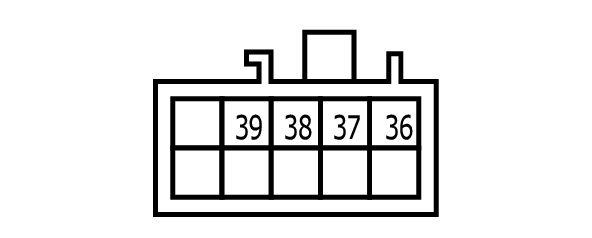

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

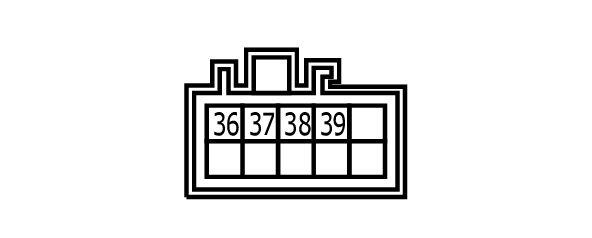

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
36	G	DOOR LOCK
37	B	DOOR UNLOCK
38	BR	DOOR OPEN SW GND
39	P	DOOR OPEN SIG
