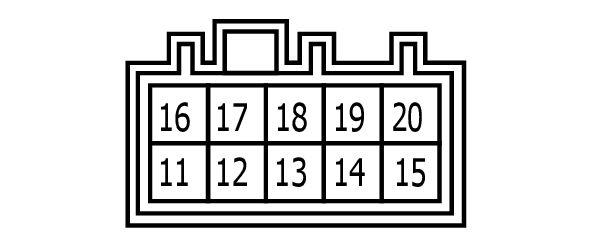

Left Front Door Control Unit Connector End View (D14)
Connector Types: MB_A0025407881
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 11 | BR | AMBIENT LAMP (OUTSIDE MIRROR) PWR |
| 12 | P | AMBIENT LAMP (OUTSIDE MIRROR) GND |
| 13 | W | BSW INDICATOR STANDBY SIG |
| 14 | O | DOOR MIRROR LH OPEN |
| 15 | BR | DOOR MIRROR LH CLOSE |
| 16 | L | BSW INDICATOR WARNING SIG |
| 17 | GR | HORIZONTAL INCLINATION SIG |
| 18 | R | POTENTIOMETER GND |
| 19 | G | VERTICAL INCLINATION SIG |
| 20 | B | POTENTIOMETER PWR |
