Fuel Level Sensor Unit And Fuel Pump Connector End View (M370)

Connector Types:  Tyco_1-969474-1-1

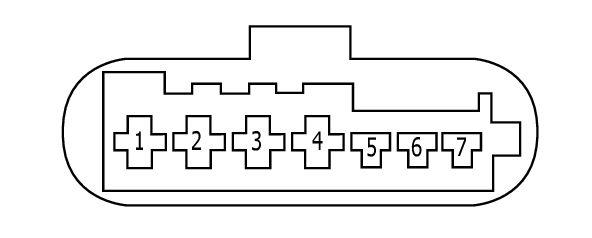

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

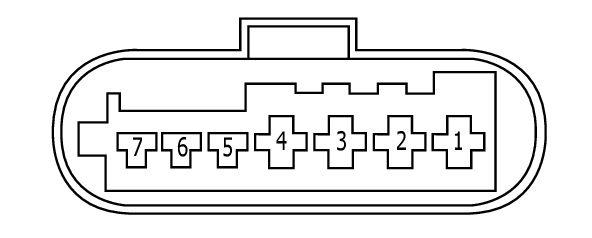

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	-	-
2	-	-
3	-	-
4	-	-
5	-	-
6	-	-
7	-	-
