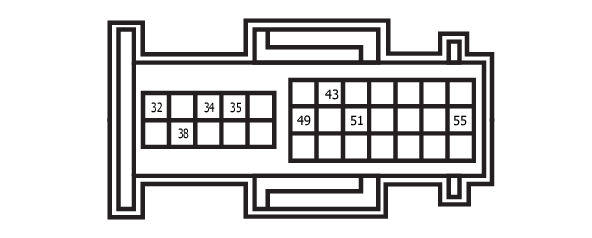

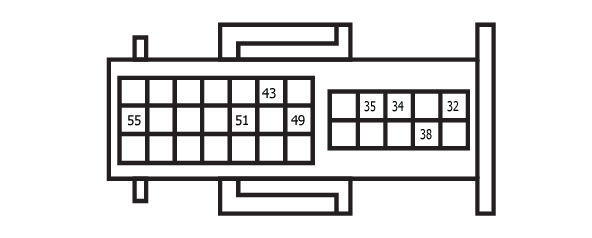

Driver Seat Control Unit Connector End View (M704)
Connector Types: A0085402181
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 32 | BR | SEAT HEATER GROUND |
| 34 | GR | RECLINING MOTOR POWER SUPPLY (BACKWARD) |
| 35 | B | SEAT HEATER POWER SUPPLY |
| 38 | L | RECLINING MOTOR POWER SUPPLY (FORWARD) |
| 43 | R | LAMBER SUPORT POWER SUPPLY |
| 49 | B | LAMBER SUPORT GROUND |
| 51 | BR | RECLINING SENSOR GROUND |
| 55 | B | RECLINING SENSOR POWER SUPPLY |
