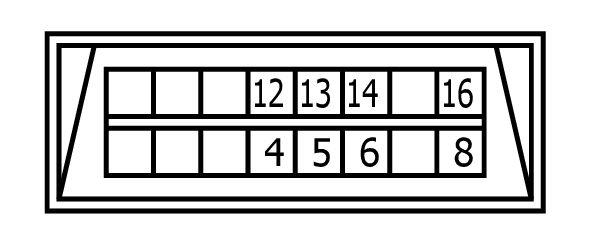

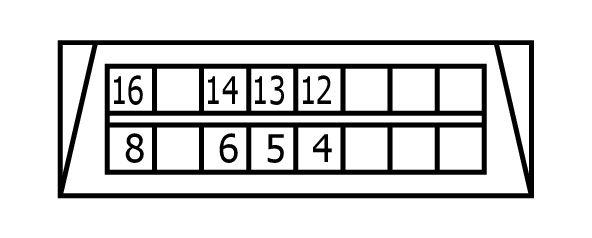

Data Link Connector End View (M43)
Connector Types:
BD16FW
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 4 |
B |
CHASSIS_GND |
| 5 |
B |
ELECTRONICS_GND |
| 6 |
GR |
DIAGNOSTICS-CAN_H_DAI |
| 8 |
W |
IGN_SW |
| 12 |
L |
DIAGNOSTIC-CAN-L_NIS |
| 13 |
V |
DIAGNOSTIC-CAN_H_NIS |
| 14 |
GR |
DIAGNOSTICS-CAN_L_DAI |
| 16 |
R |
BATTERY |
