Work Procedure (Preparation)

1. Perform self-diagnosis of front camera unit.
2. Erase DTC if DTC is detected.

Is any current DTC detected?

YES

Perform diagnosis on the detected DTC and repair or replace the malfunction parts. Refer to DTC Index .

NO

GO TO 2.

1. Adjust the tire pressure to the specified pressure value.
2. Maintain no-load in vehicle.
3. Check if coolant and engine oil are filled up to correct level and fuel tank is full.
4. Shift the selector lever to "P" position and release the parking brake.
5. Clean the windshield.
6. Completely clear off the instrument panel.

GO TO 3.

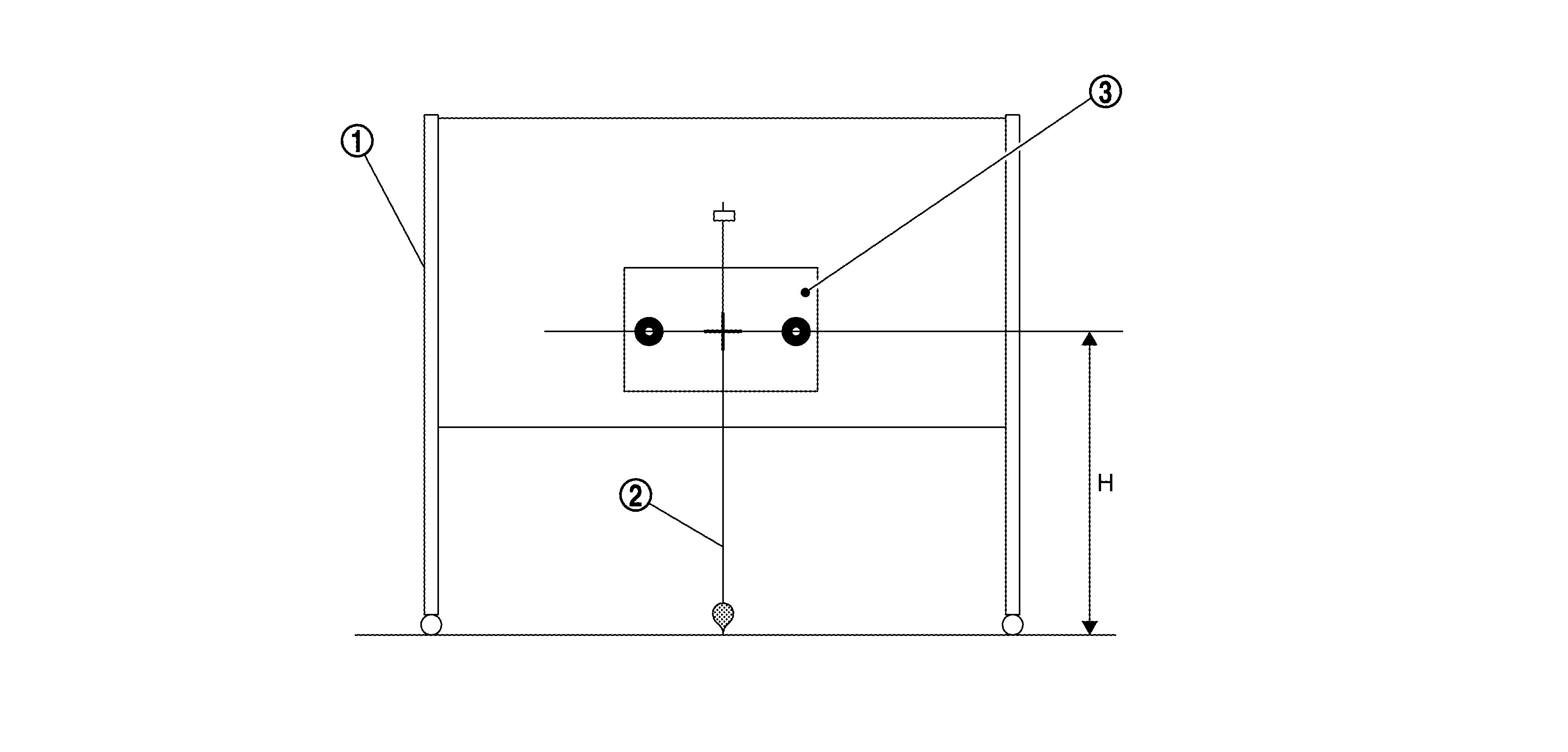

Prepare the aiming adjustment jig according to the following procedure and the figure.

1. Print out the target mark attached in this service information. Refer to Work Procedure (Target Mark Sample) .
2. Stick a printed target mark on the board with a scotch tape or a piece of double-sided tape.
   NOTE:

   • Use the board that peripheral area of the target is monochrome such as a white-board.
   • Notice that the cross of the target is horizontal and vertical.

   Courtesy of NISSAN NORTH AMERICA, INC.

   Board

   String

   Printed target

   Height of a target center (H)

   : 1275 mm (50.2 in)

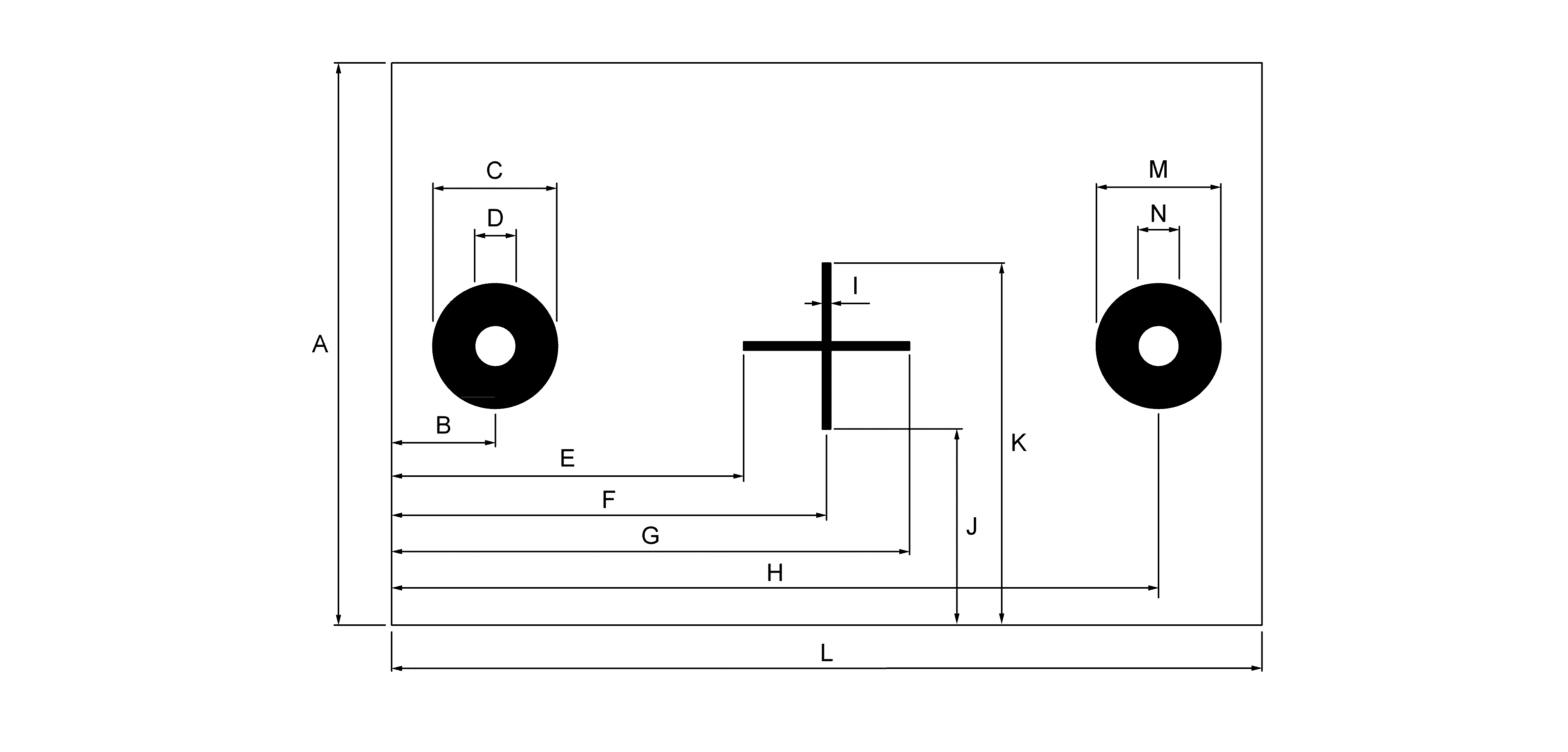

   Courtesy of NISSAN NORTH AMERICA, INC.

   A	: 200.0 mm (7.87 in)	H	: 277.5 mm (10.93 in)
   B	: 37.5 mm (1.476 in)	I	: 3.0 mm (0.12 in)
   C	: 45.0 mm (1.77 in)	J	: 70.0 mm (2.76 in)
   D	: 15.0 mm (0.59 in)	K	: 130.0 mm (5.12 in)
   E	: 127.5 mm (5.02 in)	L	: 315.0 mm (12.40 in)
   F	: 157.5 mm (6.20 in)	M	: 45.0 mm (1.77 in)
   G	: 187.5 mm (7.38 in)	N	: 15.0 mm (0.59 in)

Proceed to Work Procedure (Target Setting) .
