Home >> Infiniti >> 2019 >> Q60 Pure, AWD >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling System >> Removal And Installation >> Multi-Way Control Valve >> Exploded View

Exploded View

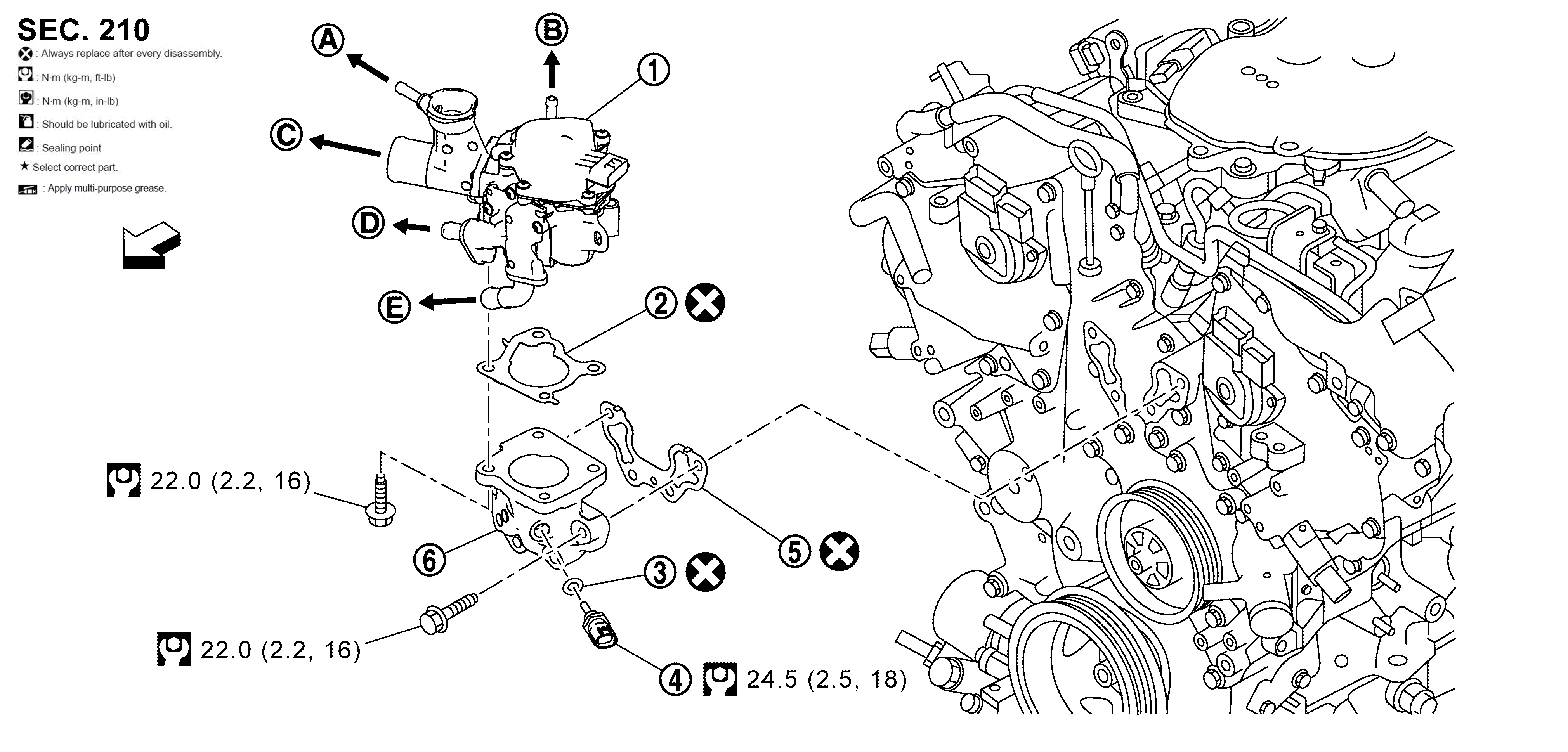

Fig 1: Multi-Way Control Valve Replacement Components With Torque Specifications
GNSJSBIA9877GB-877Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Multi-way control valve

SYMBOL

Gasket

SYMBOL

Gasket

SYMBOL

Water temperature sensor

SYMBOL

Gasket

SYMBOL

Water outlet

SYMBOL

To reservoir tank

SYMBOL

To turbocharger assembly (bank 1)

SYMBOL

To radiator

SYMBOL

To A/T fulid warmer

To engine oil cooler

SYMBOL

To heater

SYMBOL

: Engine front

SYMBOL

: N.m (kg-m, ft-lb)

SYMBOL

: Always replace after every disassembly.
