Home >> Infiniti >> 2019 >> Q50 Sport, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (3.0L) (2 Of 6) >> System >> Circuit Diagram (Turbo High Pressure Model) >> For MEXICO

For MEXICO

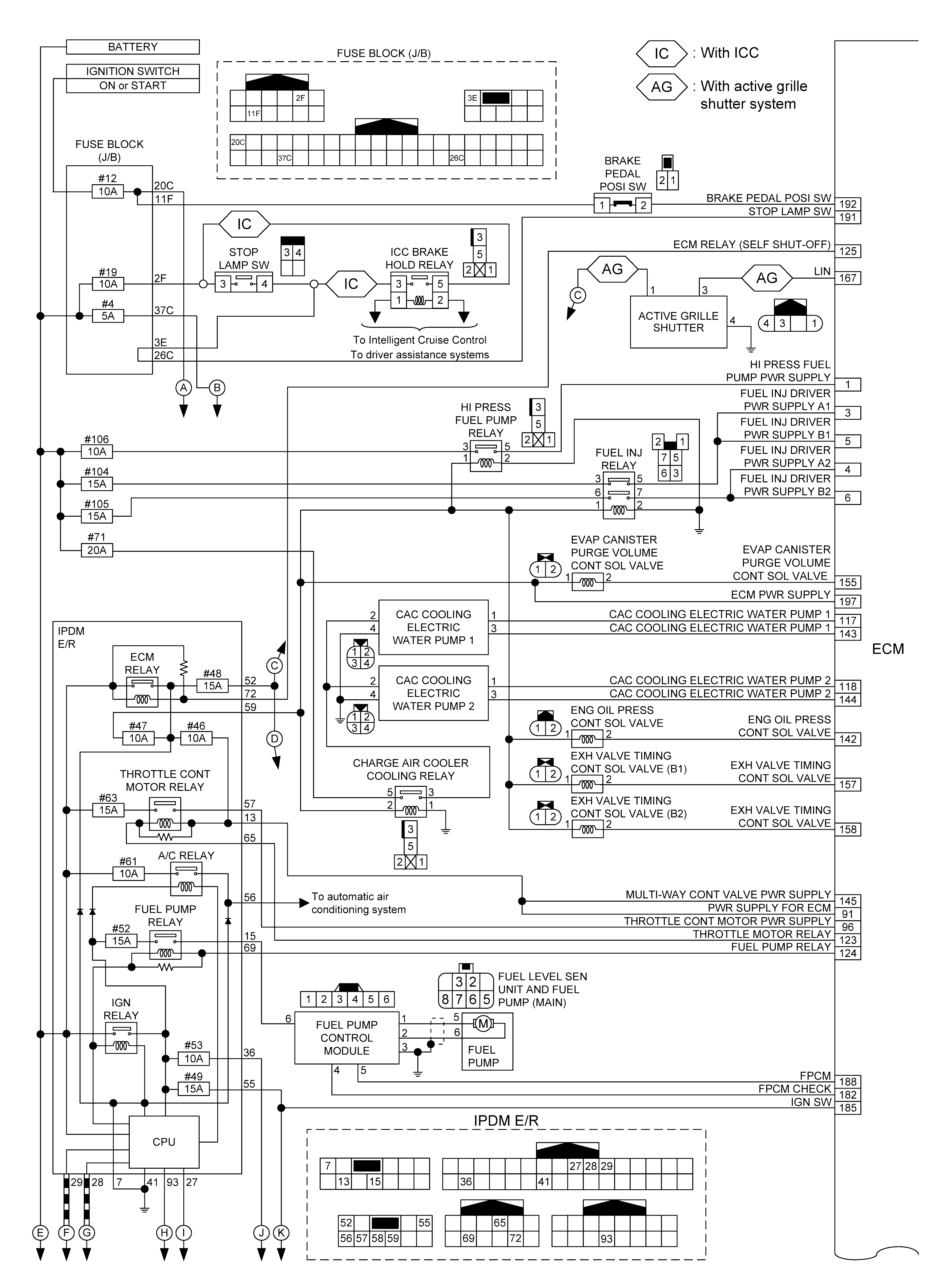

GNSJSBIB2401GB-401Courtesy of NISSAN NORTH AMERICA, INC.
GNSJSBIB0569GB-569Courtesy of NISSAN NORTH AMERICA, INC.
GNSJSBIB0570GB-570Courtesy of NISSAN NORTH AMERICA, INC.
GNSJSBIB0571GB-571Courtesy of NISSAN NORTH AMERICA, INC.

*: Exhaust gas temperature sensor is not applicable.
