System Description
>>
System
>>
LDP (Without Direct Adaptive Steering System)
>>
System Description
>>

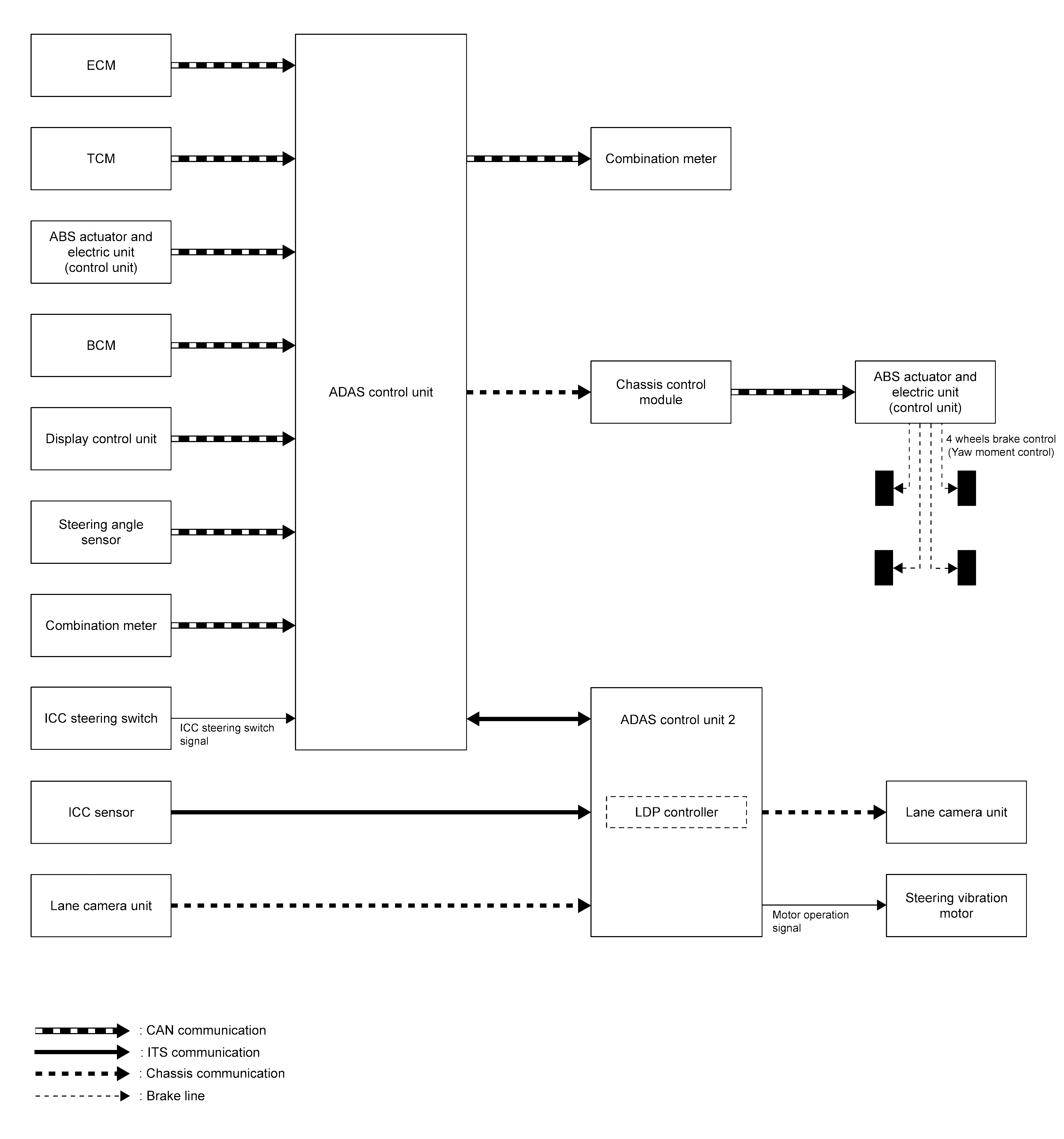

System Diagram
System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
TCM is connected to drivetrain CAN communication and transmits a CAN communication signal to ADAS control unit via ECM.
