Steering Angle Sensor Connector End View (M30)

Connector Types:  TH08FW-NH

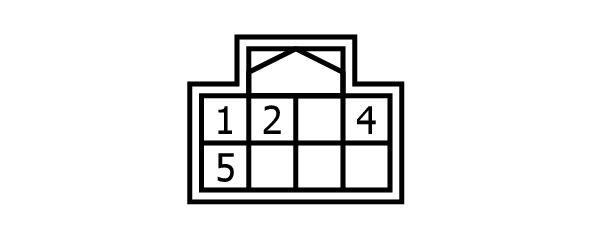

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

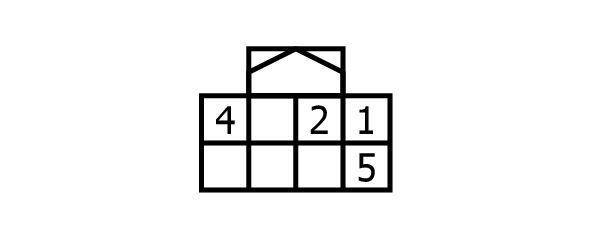

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	B	GROUND
2	P	-
4	GR	-
5	L	-
