NAVI Control Unit Connector End View (M399)

Connector Types:  HAA04HL

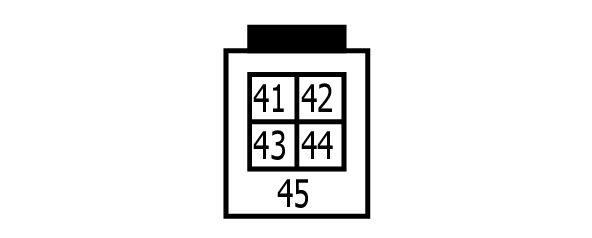

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

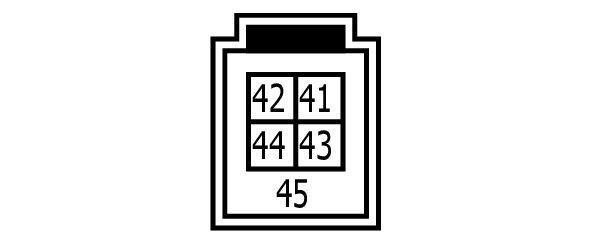

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
41	-	USB V BUS SIGNAL
42	-	USB GROUND
43	-	USB D+ SIGNAL
44	-	USB D - SIGNAL
45	-	SHIELD
