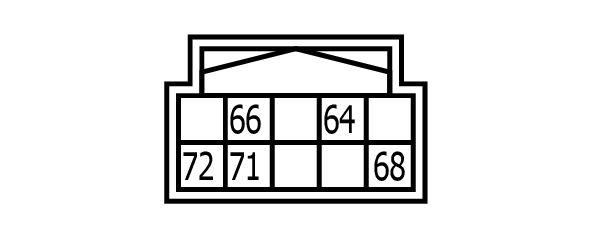

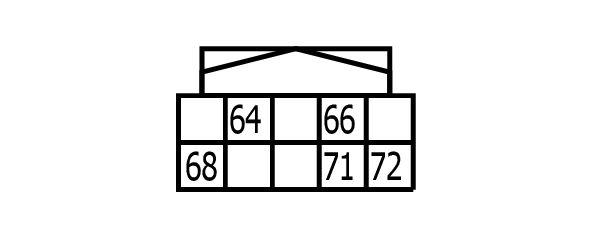

IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (E17)
Connector Types:
TH10FB-NH
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 64 |
G/Y |
- |
| 66 |
SB |
- |
| 68 |
O |
- |
| 71 |
BR |
- |
| 72 |
Y/R |
- |
