Engine Oil Temperature Sensor Connector End View (F38)

Connector Types:  E02FGY-RS

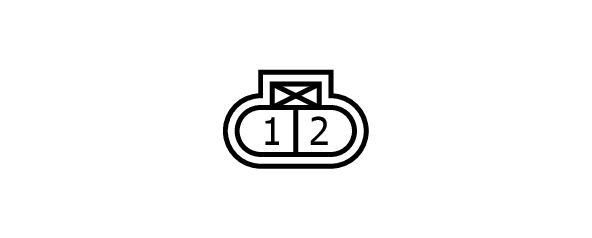

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

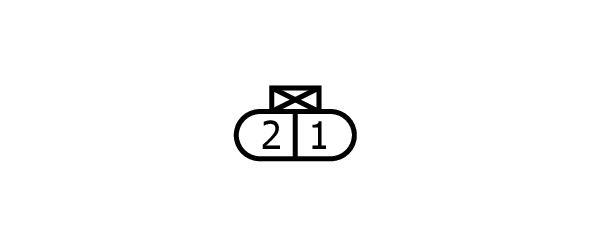

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	L/Y	ENGINE OIL TEMPERATURE SENSOR
2	R	-
