Data Link Connector End View (M4)

Connector Types:  BD16FW

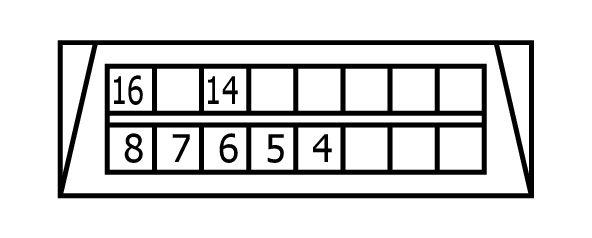

Fig 1: Terminal-side
GNSW42987Courtesy of NISSAN NORTH AMERICA

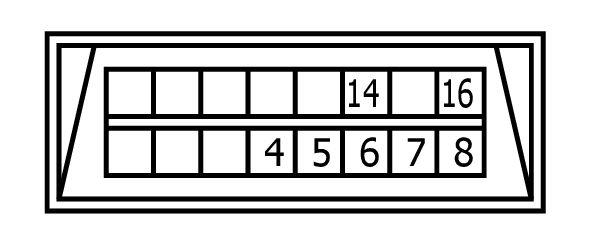

Fig 2: Harness-side
GNSW43726Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
4 B -
5 B -
6 L -
7 SB -
8 GR -
14 P -
16 Y -
