Exploded View

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

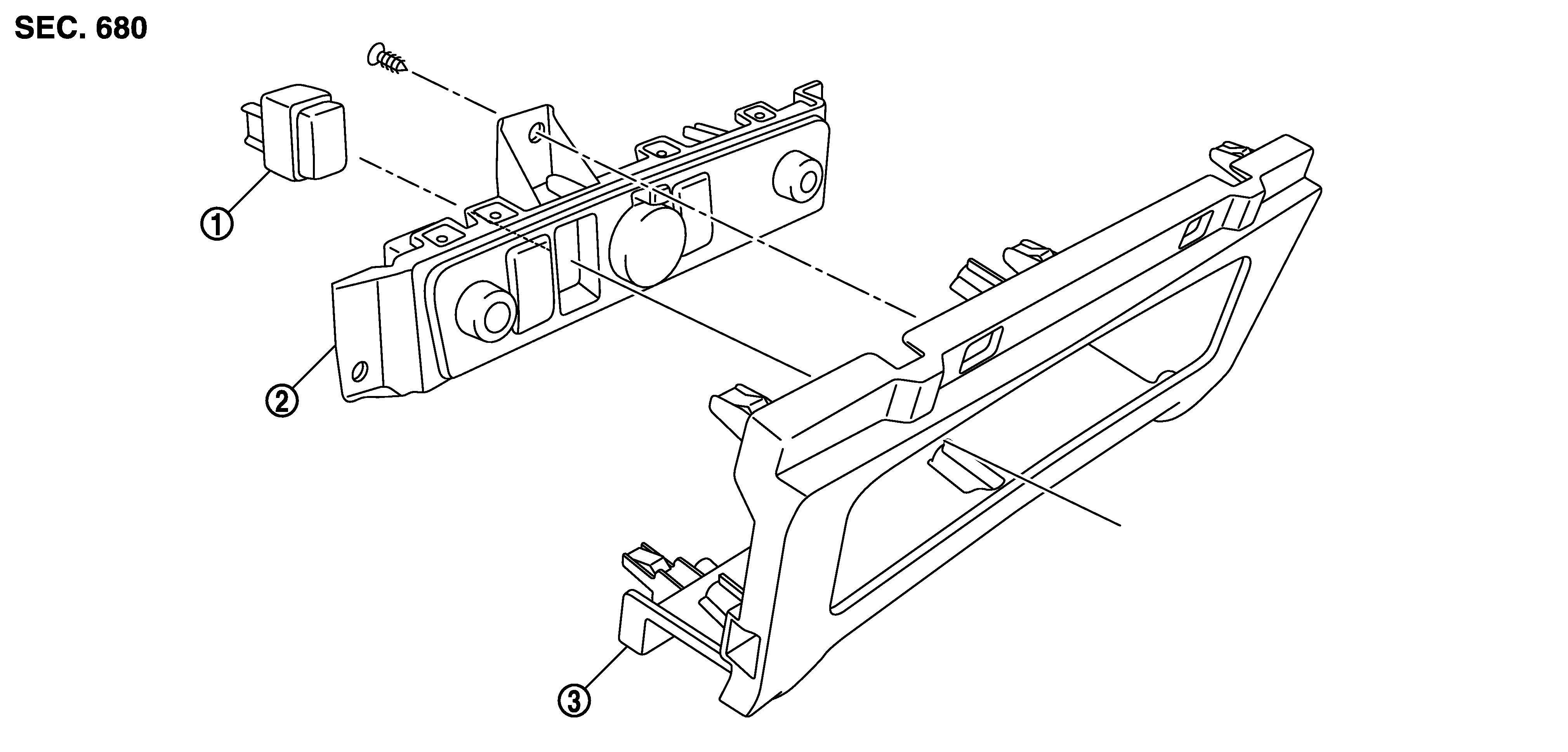

GNSJSGIA0825Z-825Courtesy of NISSAN NORTH AMERICA, INC.

1.

Heated steering wheel switch

2.

Cluster lid C lower

3.

Cluster lid C lower
