Removal and Installation: Removal

  1. Remove front door finisher. Refer to Removal and Installation .

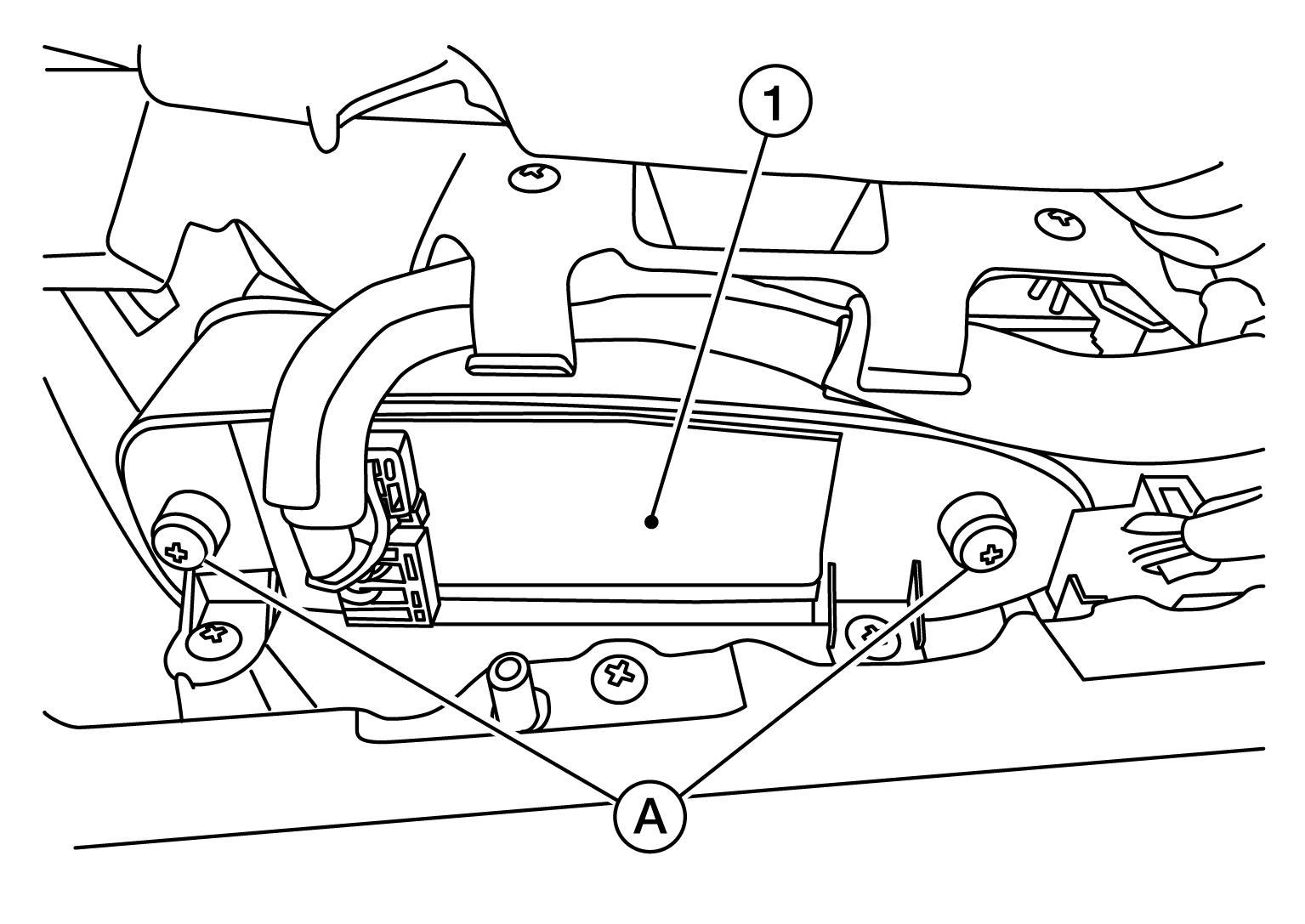

  2. Disconnect the harness connector from the power window and door lock/unlock switch (RH) (1).
    GNSDB121658Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove two screws (A) and the power window and door lock/unlock switch RH (1) and finisher as an assembly.

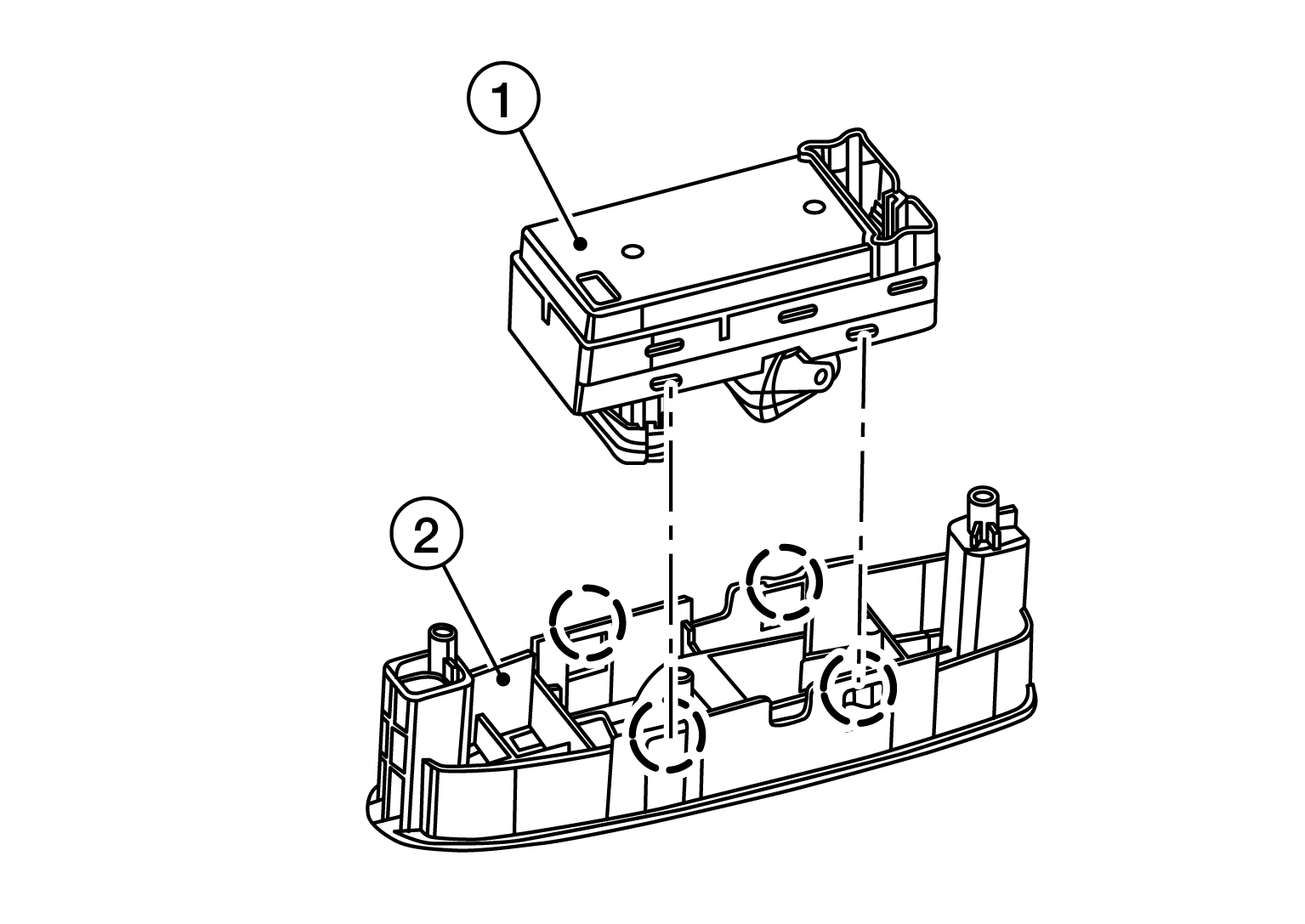

  4. Release four pawls then separate power window and door lock/unlock switch (RH) (1) from switch finisher (2).
    GNSDB122764Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl
