Removal and Installation: Removal

  1. Remove the instrument lower panel LH. Refer to Removal and Installation .

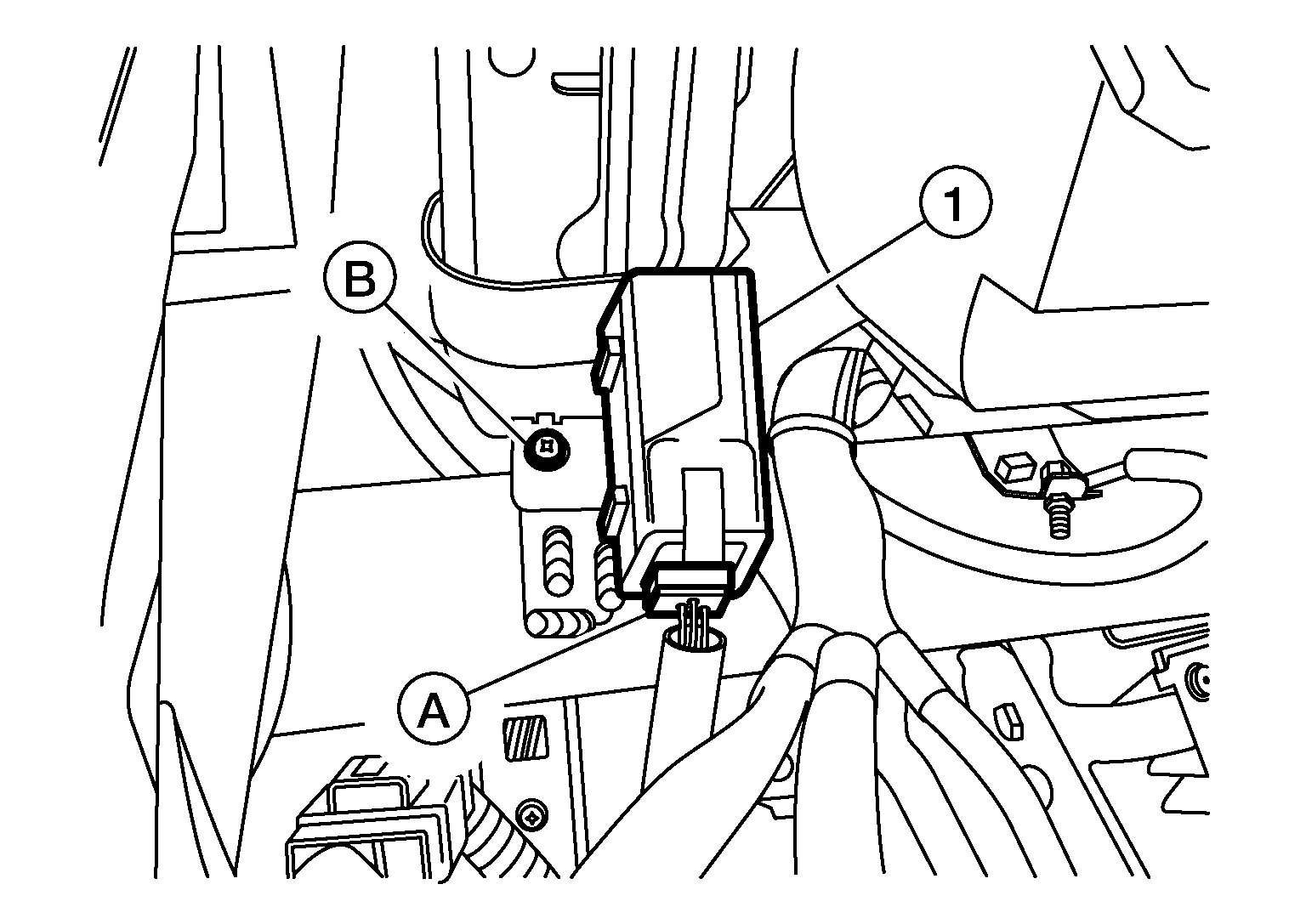

  2. Disconnect the harness connector (A) from the ADAS Control Unit 2 (1).
    GNSDB119208Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove screw (B) and remove the ADAS Control Unit 2.
