6CH Can Gateway
WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

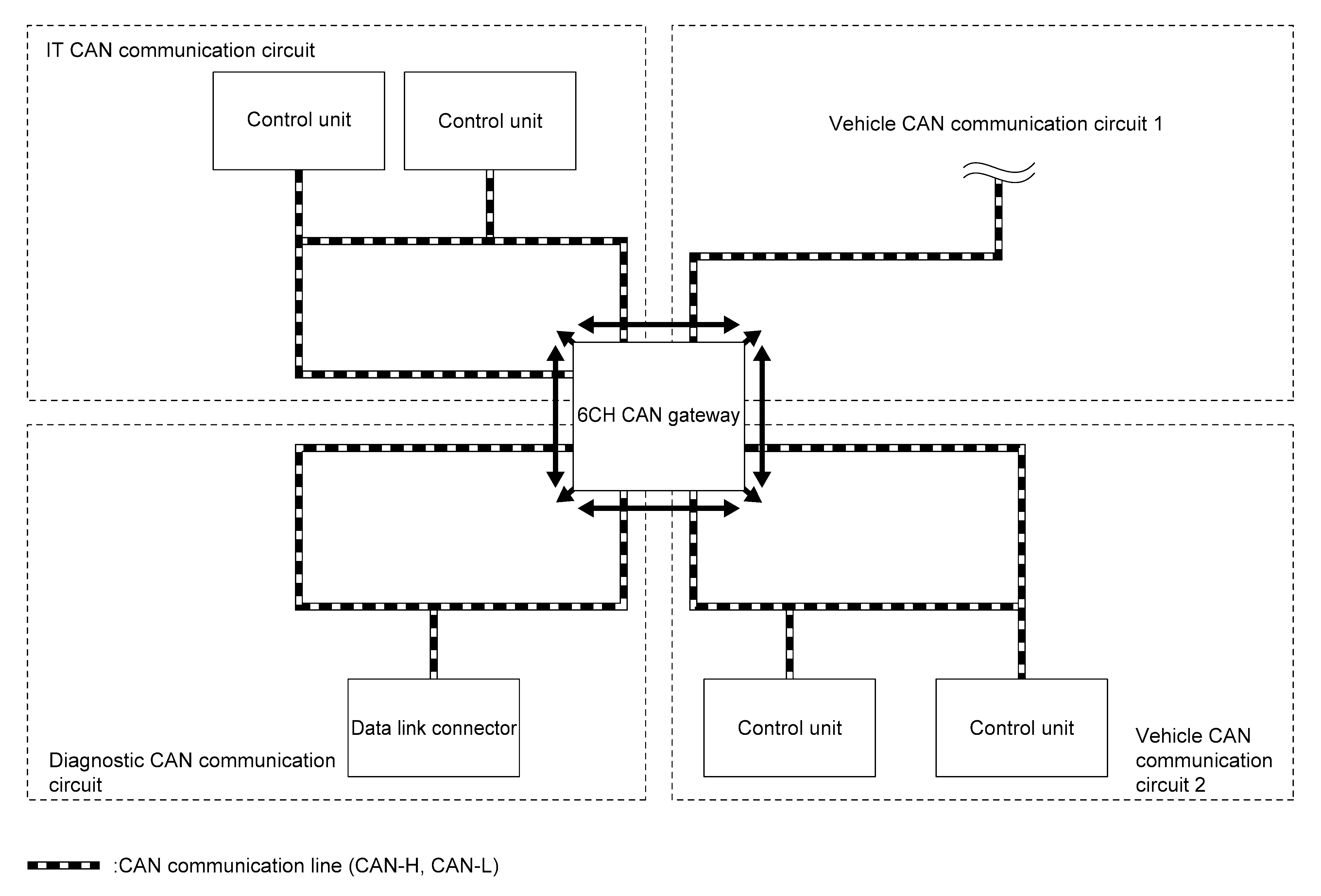

System Diagram
 Courtesy of NISSAN NORTH AMERICA, INC.
|
System Description
- The 6CH CAN gateway system communicates between two vehicle CAN communication circuits, diagnostic CAN communication circuit and IT CAN communication circuit.
- This system selects and transmits only necessary information.
