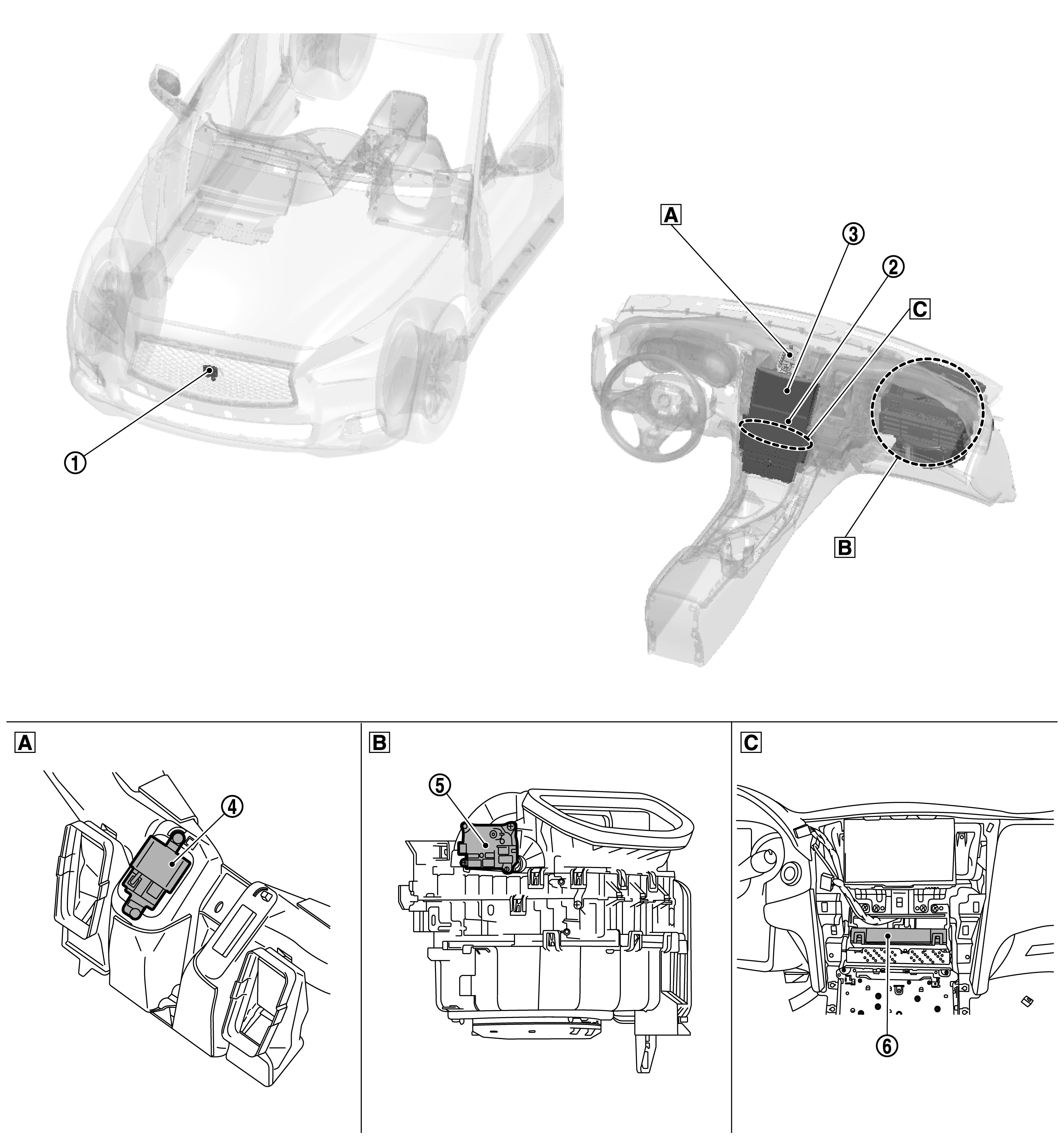

Component Parts Location
WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Instrument panel assembly is removed |
|
Blower unit assembly |
|
Integral switch is removed |
|
No. |
Component |
Function |
|
|
|
Exhaust gas/outside odor detecting sensor |
||
|
|
Integral switch |
||
|
|
Display control unit |
Display control unit receives A/C switch operation signal from integral switch, and transmits it to A/C auto amp. via CAN communication line. Display control unit receives A/C display signal from A/C auto amp. via CAN communication line, and transmits it to integral switch. Refer to Component Parts Location for detailed installation location. |
|
|
|
Ionizer |
||
|
|
Intake door motor |
||
|
|
A/C auto amp. |
||
