Camera Aiming Adjustment
>>

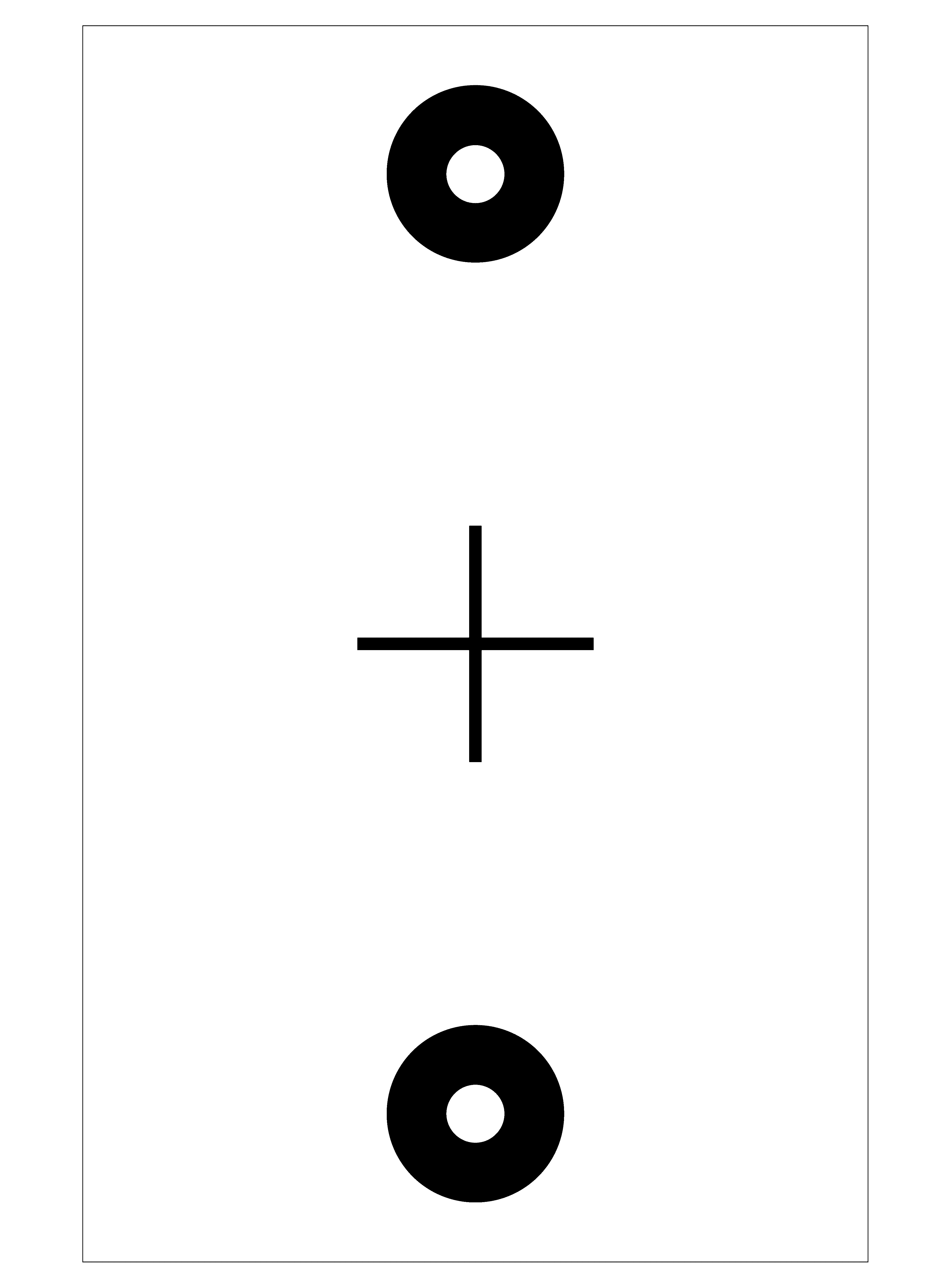

Work Procedure (Target Mark Sample)
Work Procedure (Target Mark Sample)
NOTE:
Print this illustration in such as a way that the short side is 200 mm (7.87 in) long.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
