Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. When replacing AWD control unit, read out wear data from AWD control unit using CONSULT. Refer to Description .
  2. Turn the ignition switch OFF.
  3. Remove luggage side finisher lid LH SYMBOL in luggage component. Refer to Exploded View .
    GNSJSDIA8790Z-790Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Vehicle front
  4. Disconnect AWD control unit harness connector.
  5. Remove AWD control unit mounting screws and remove AWD control unit SYMBOL .

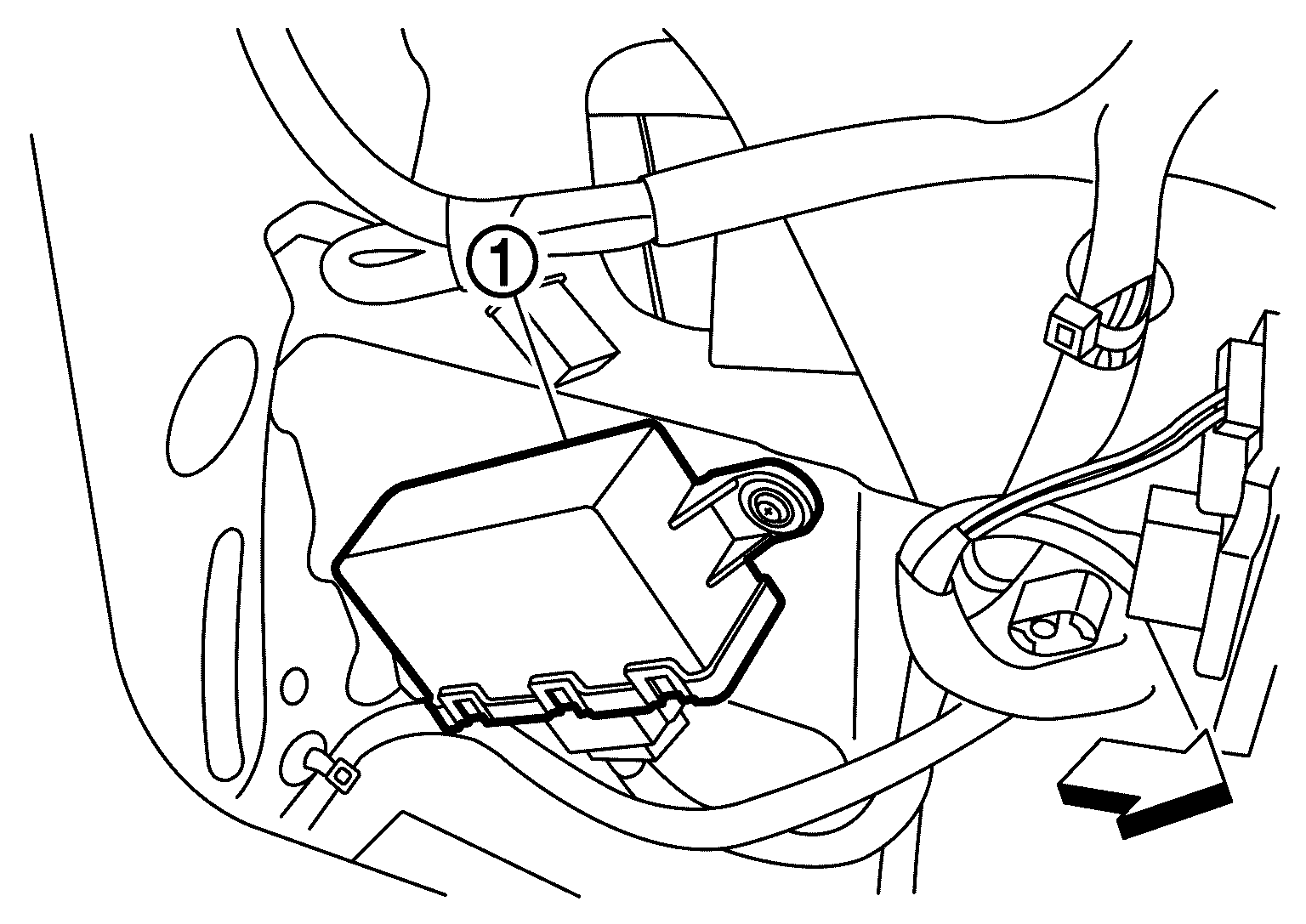

    GNSJSDIA8791Z-791Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Vehicle front
  6. Remove spreader nuts if necessary.
