Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

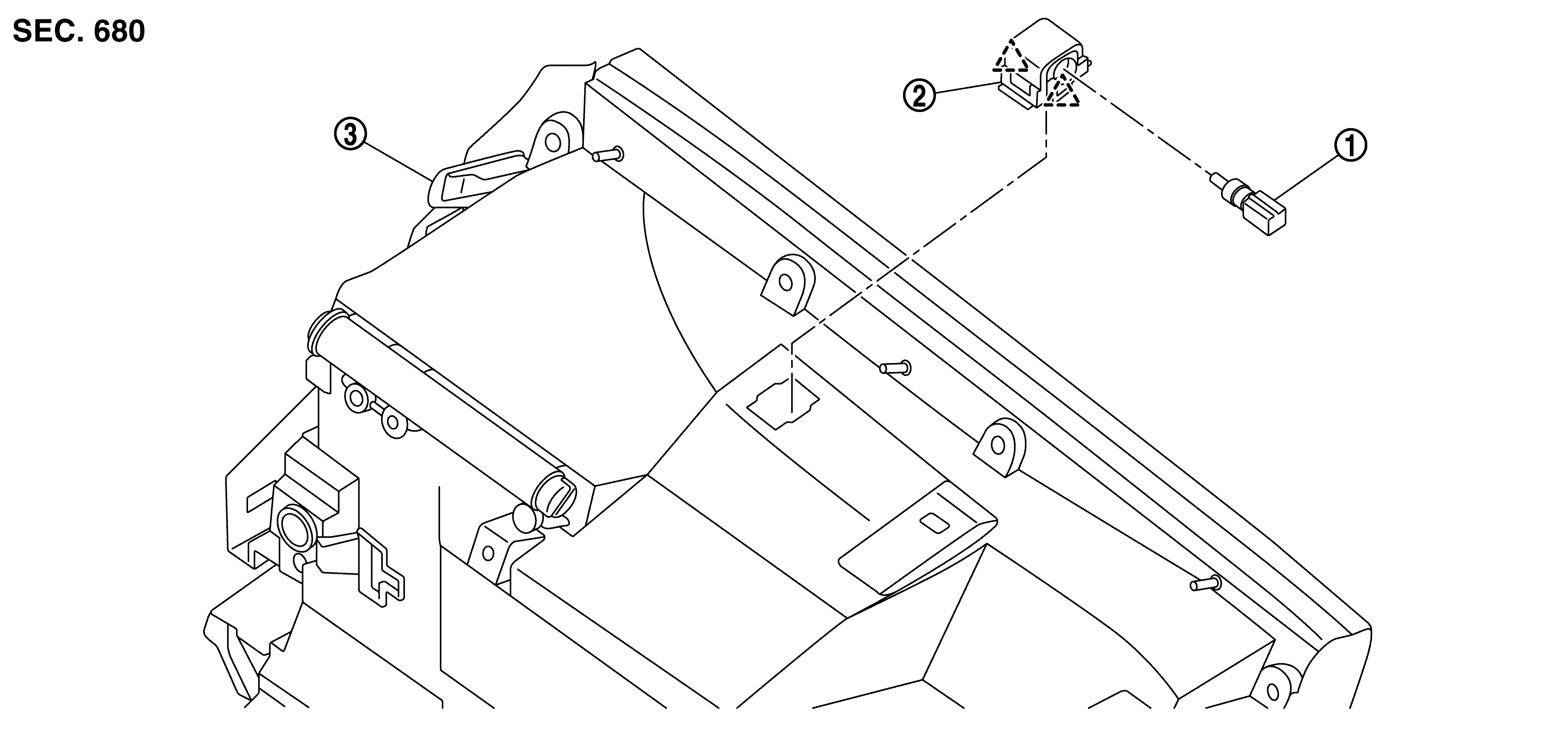

GNSJMLIA4270Z-270Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Bulb & socket assembly

SYMBOL

Lamp housing

SYMBOL

Instrument lower panel RH

SYMBOL

: Pawl
