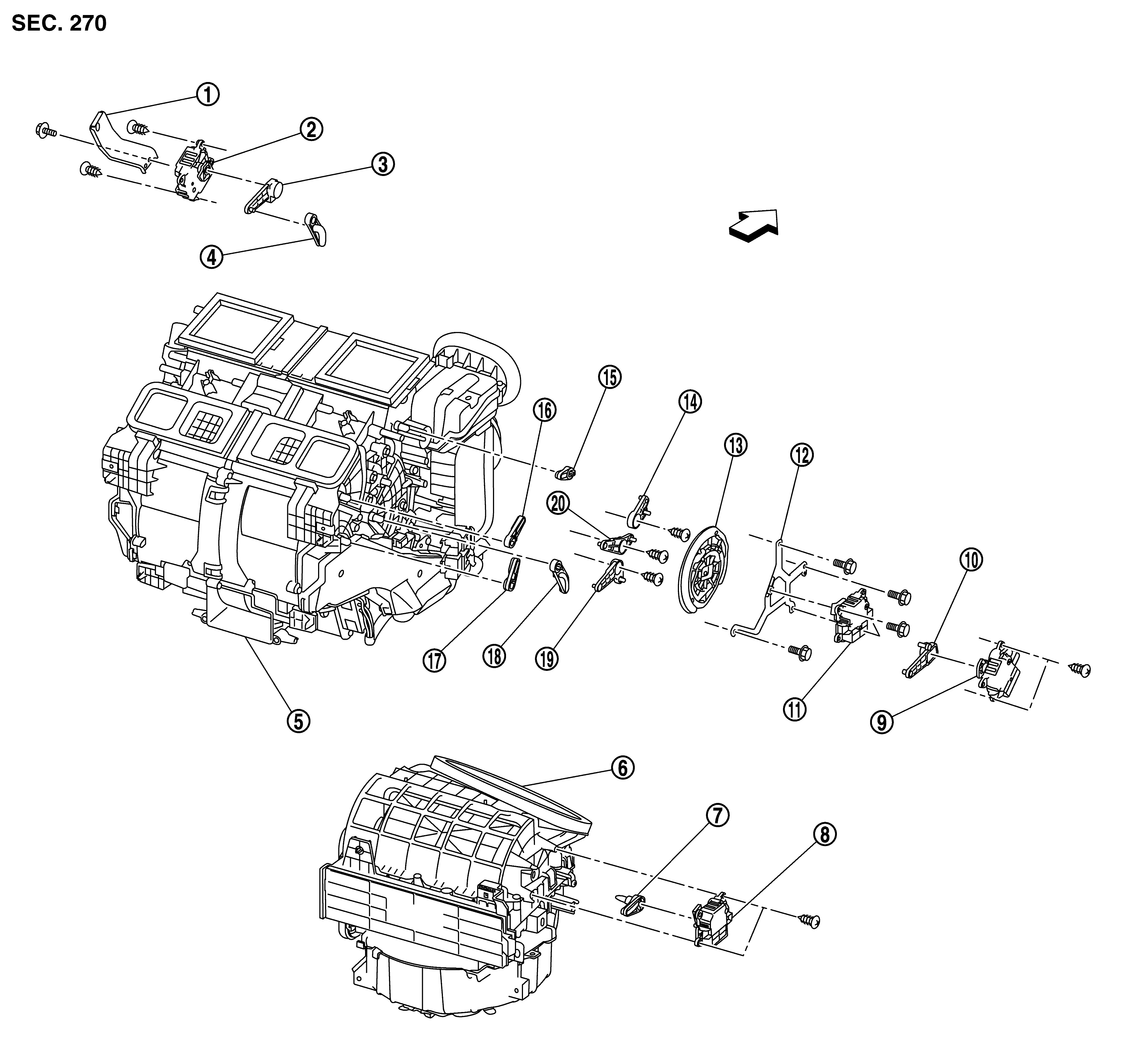

Exploded View
WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Harness bracket |
|
Air mix door motor LH |
|
Air mix door link LH |
|
|
Air mix door lever LH |
|
Heater & cooling unit assembly |
|
Blower unit assembly |
|
|
Intake door lever |
|
Intake door motor |
|
Air mix door motor RH |
|
|
Air mix door link RH |
|
Mode door motor |
|
Mode door motor bracket |
|
|
Main link |
|
Defroster door link |
|
Defroster door lever |
|
|
Ventilator door lever |
|
Foot door lever |
|
Air mix door lever RH |
|
|
Foot door link |
|
Ventilator door link |
||
|
|
: Vehicle front |
||||
