Control Flow

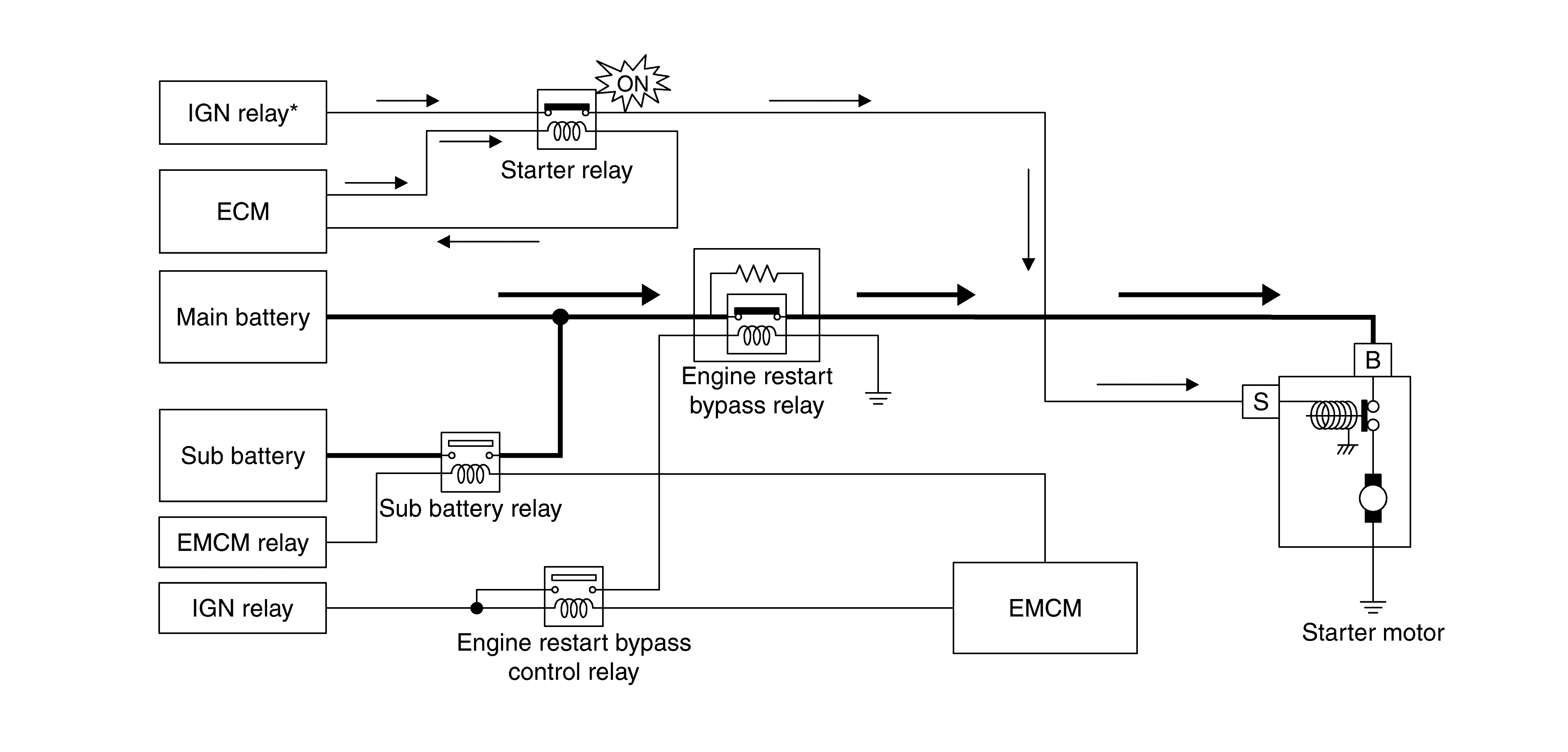

During Engine Start with Ignition Switch

Courtesy of NISSAN NORTH AMERICA, INC.

*: Fuse and Fusible Link Block

When the engine is started with ignition switch operation, ECM turns ON the starter relay to activate the starter motor. This allows the starter motor to start the engine.

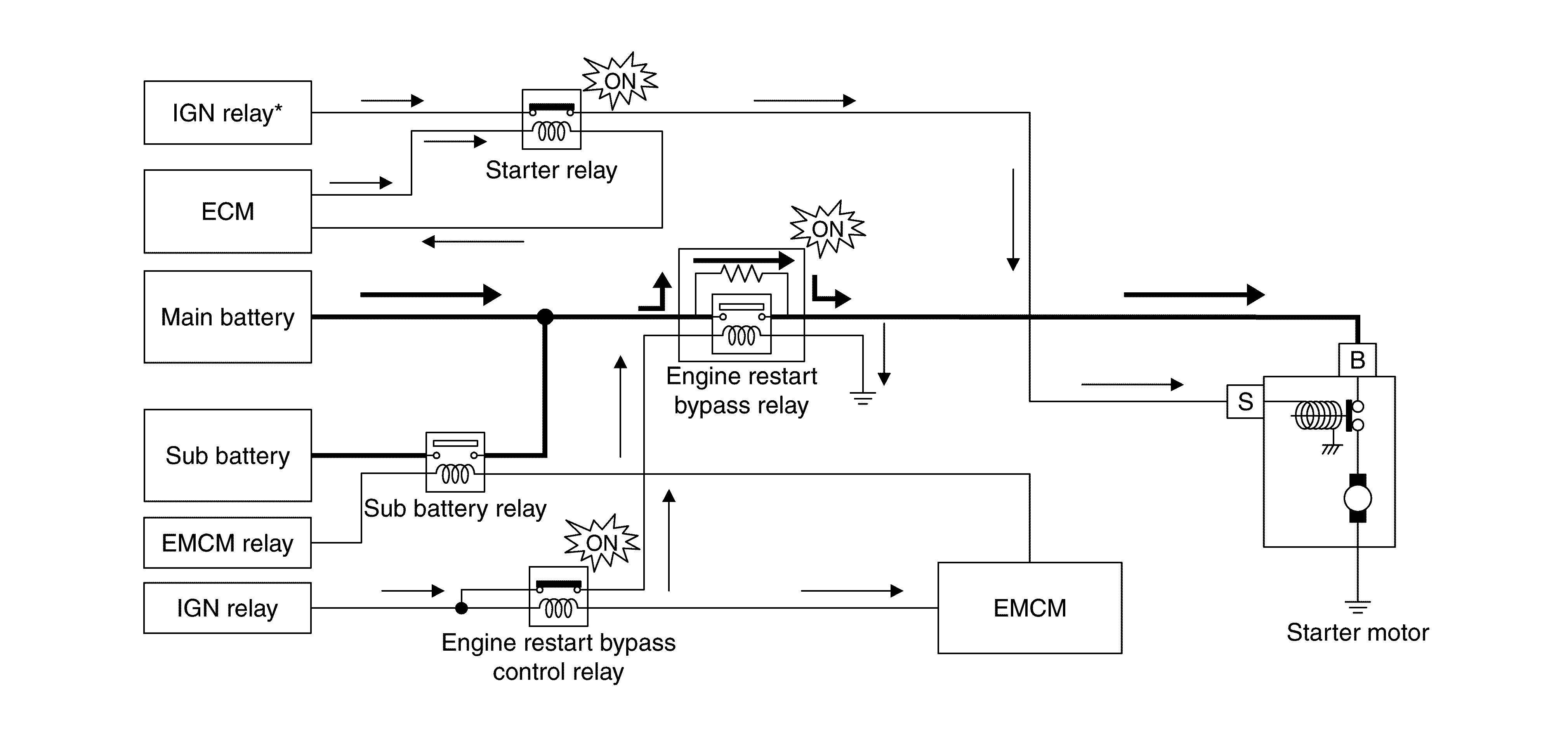

During Engine Restart by Stop/Start System

Courtesy of NISSAN NORTH AMERICA, INC.

*: Fuse and Fusible Link Block

When engine is restarted, ECM turns ON the starter relay. At the same time, EMCM turns ON the engine restart bypass control relay and activates the engine restart bypass relay. When the starter motor is rotating, EMCM turns OFF the engine restart bypass control relay to deactivate the engine restart bypass relay.

Relay Activation Matrix

*: Instantaneously right after the restart.
