Home >> Infiniti >> 2018 >> Q60 Pure, AWD >> Repair and Diagnosis >> Steering >> Steering Control Systems >> Steering Control System - Hydraulic Pump Electric P/S >> System Description >> System >> Circuit Diagram

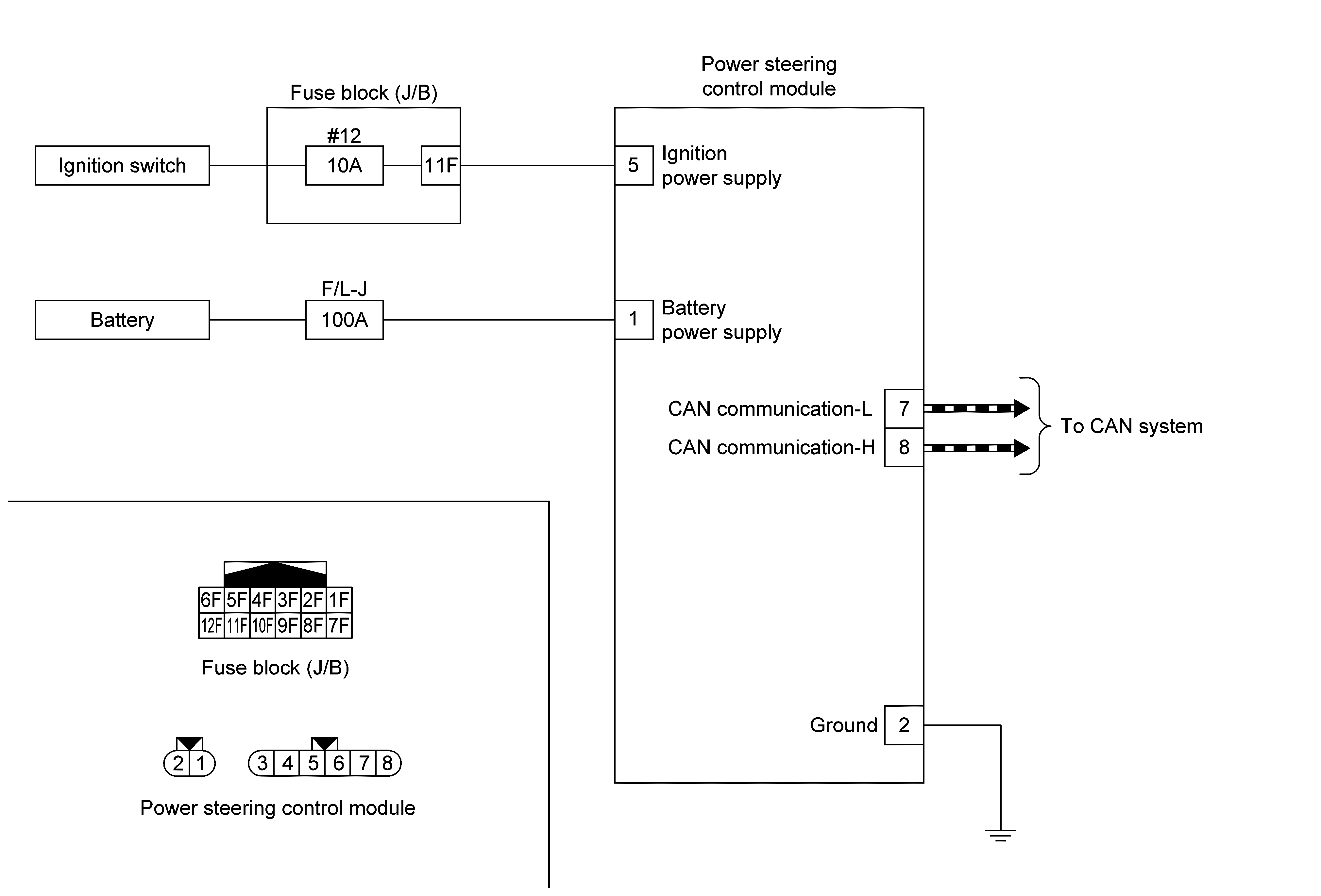

Circuit Diagram

GNSJSGIA1635GB-635

Courtesy of NISSAN NORTH AMERICA, INC.
