Electronically Controlled Power Steering System: Wiring Diagram

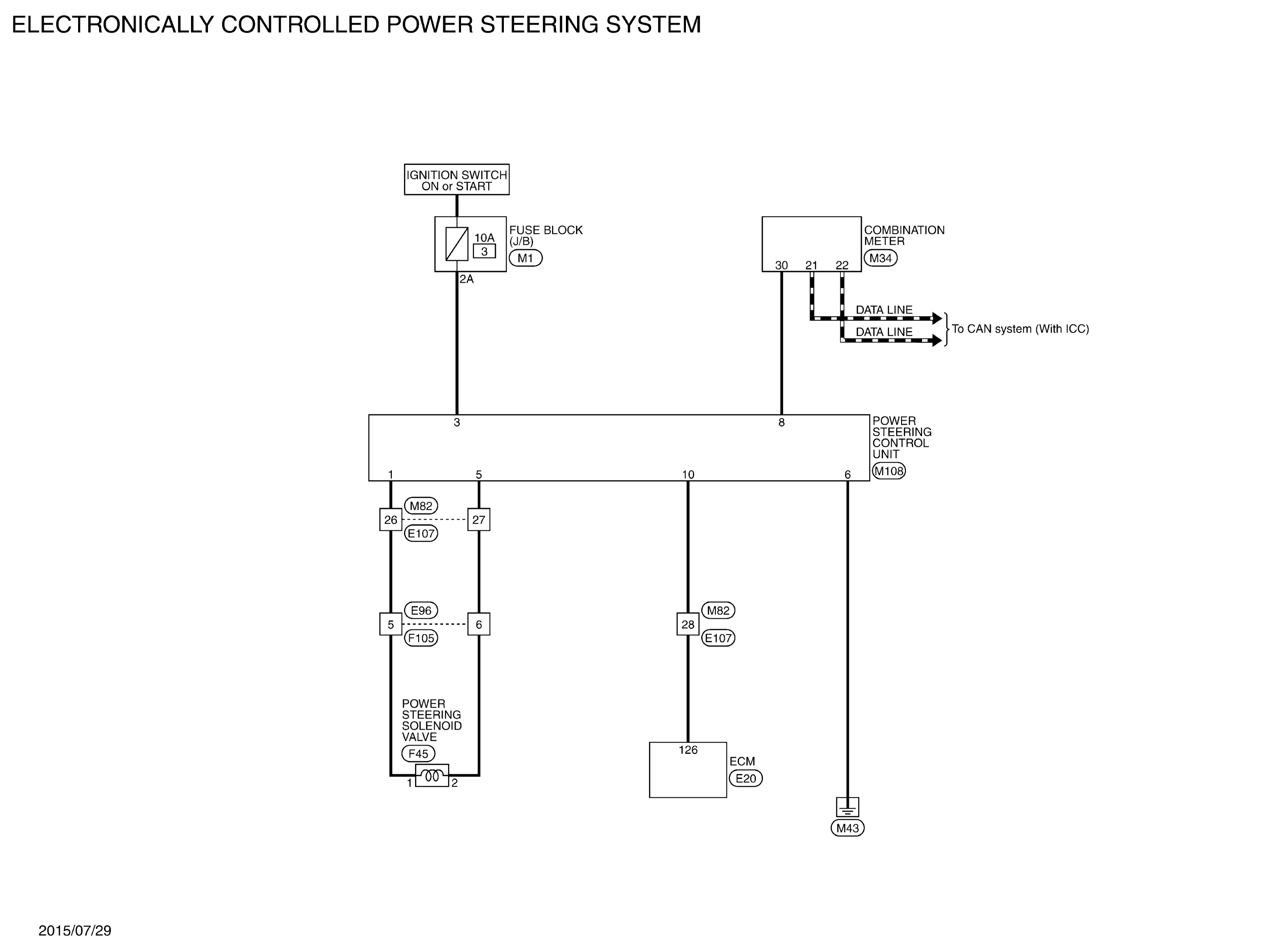

GNSJRGWC2678GB-678

Courtesy of NISSAN NORTH AMERICA, INC.

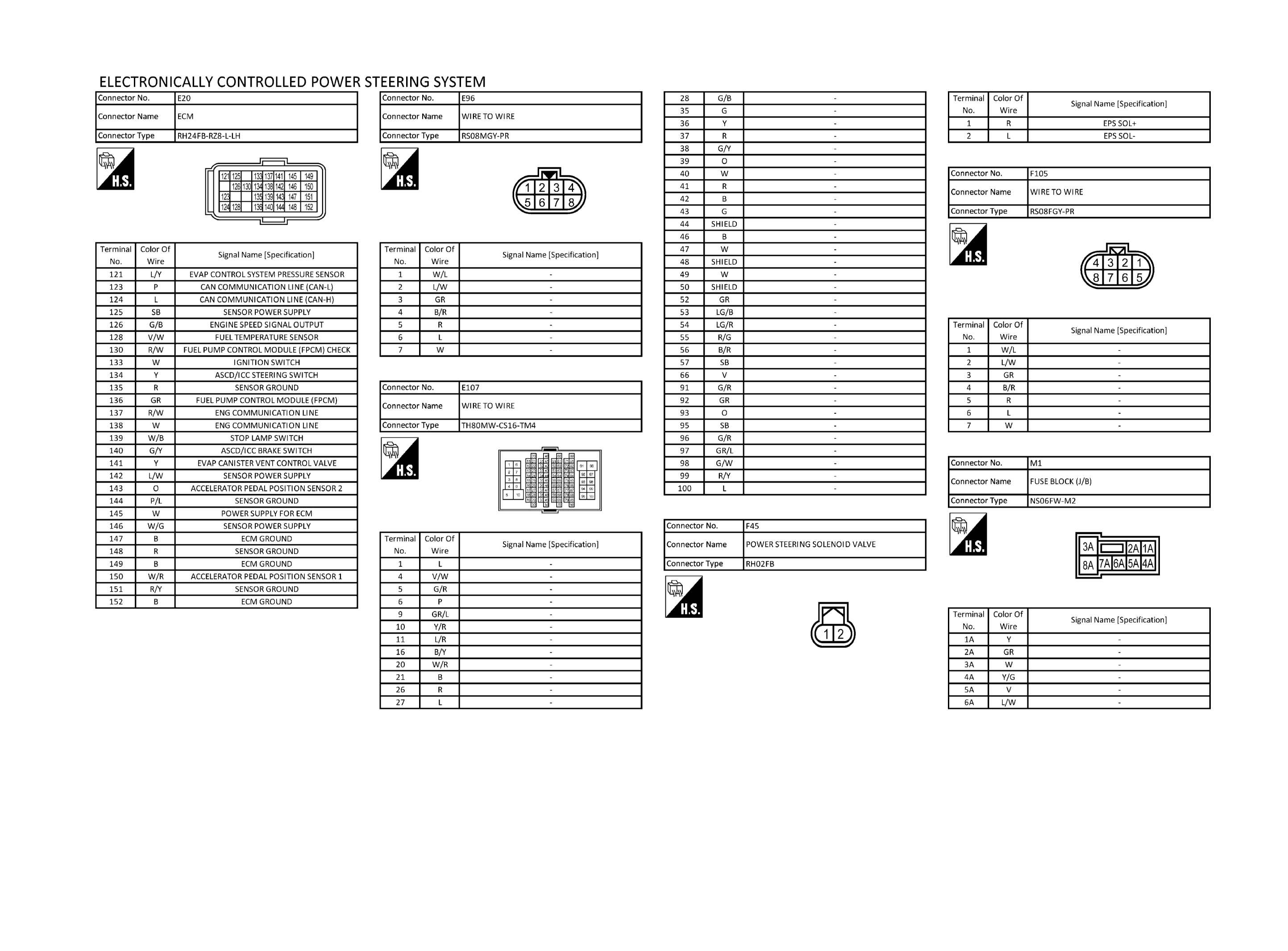

GNSJRGWC3677GB-677

Courtesy of NISSAN NORTH AMERICA, INC.

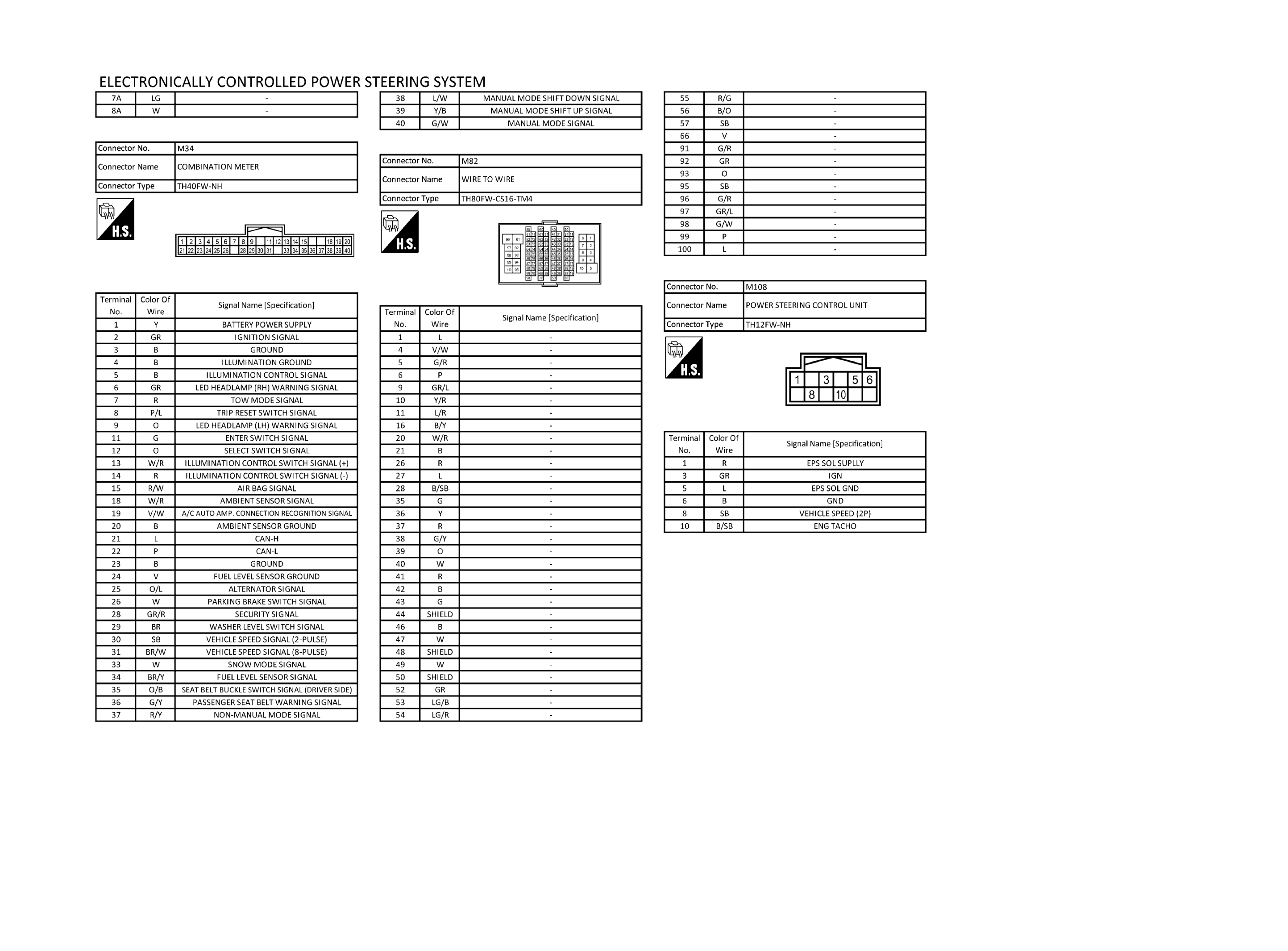

GNSJRGWC3678GB-678

Courtesy of NISSAN NORTH AMERICA, INC.
