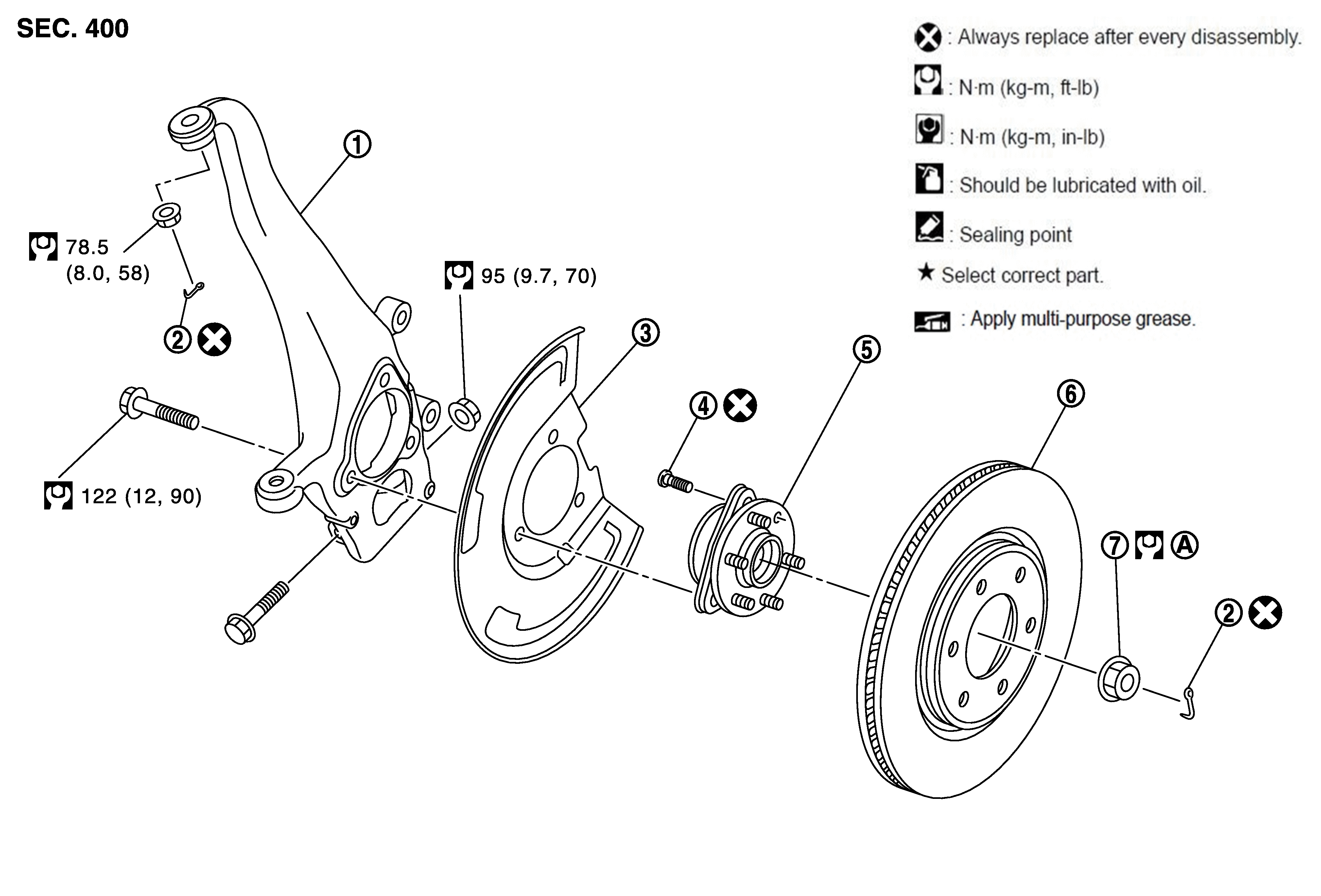

Exploded View
WARNING: This page is about a different variant/trim than selected.
| Steering knuckle | Cotter pin | Splash guard | |||
| Hub bolt | Wheel hub and bearing assembly | Disc rotor | |||
| Wheel hub lock nut | |||||
| Tightening must be done following the installation procedure. Refer to REMOVAL AND INSTALLATION . | |||||
| :Always replace after every disassembly. | |||||
| :N•m (kg - m, ft - lb) | |||||
