With HBMC

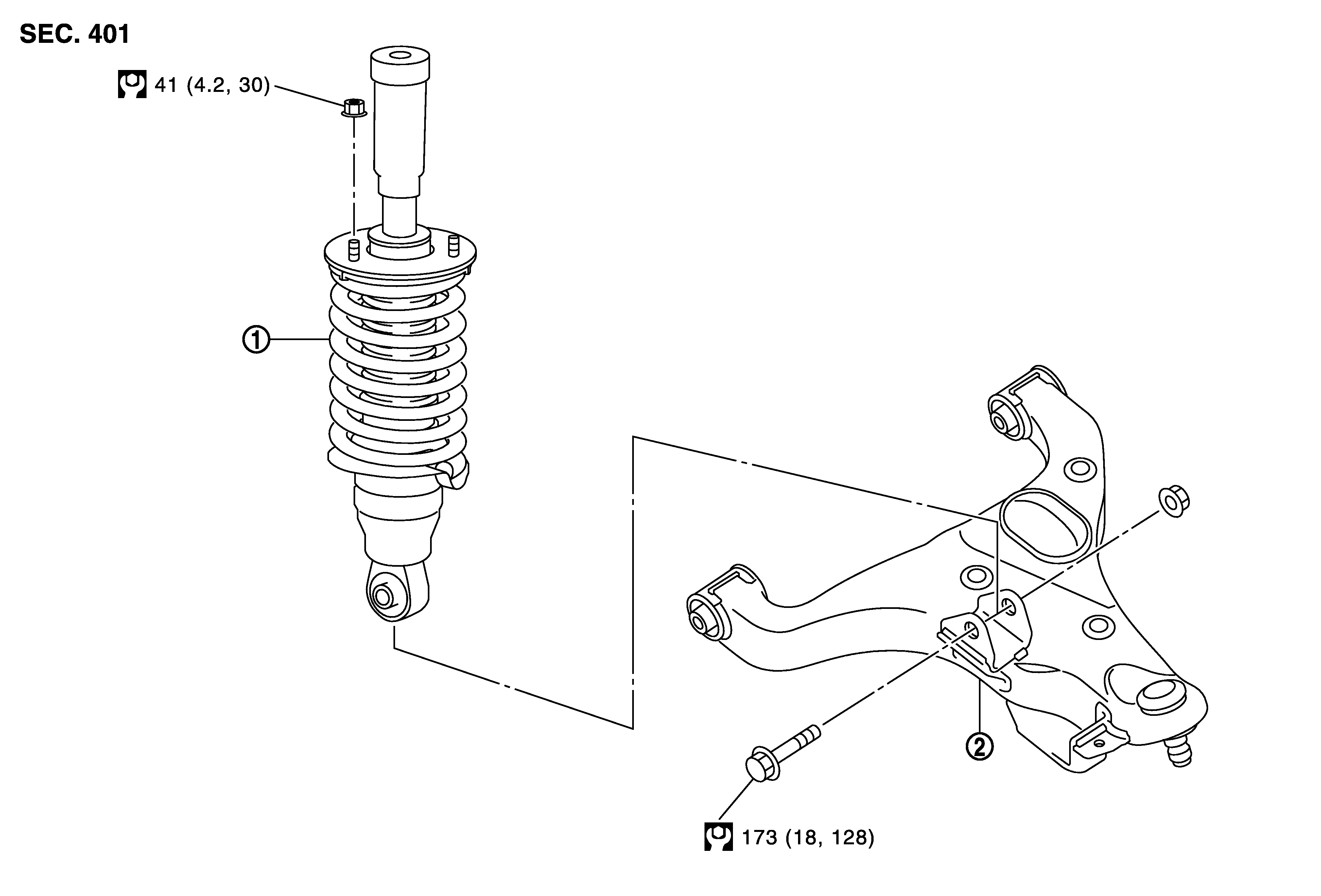

Fig 1: Front Coil Spring And Shock Absorber W/HBMC With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Shock absorber assembly	2.	Lower link
	: N•m (kg-m, ft-lb)

CAUTION:

The shock absorber assembly cannot be disassembled.
