Exploded View

WARNING: This page is about a different variant/trim than selected.

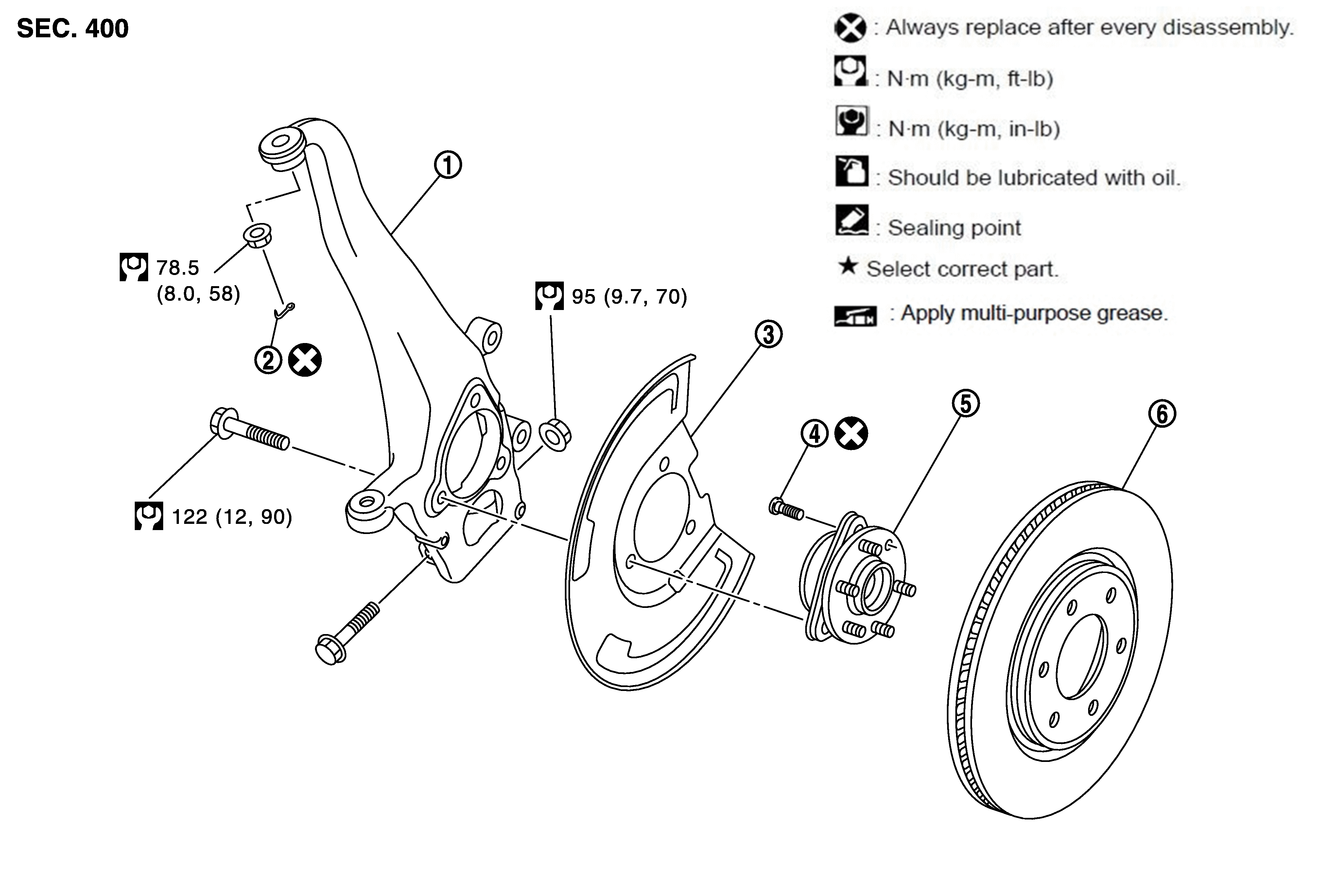

Fig 1: Front Wheel Hub And Knuckle With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Steering knuckle	Cotter pin	Splash guard
Hub bolt	Wheel hub and bearing assembly	Disc rotor
:Always replace after every disassembly.
:N•m (kg - m, ft - lb)
