Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

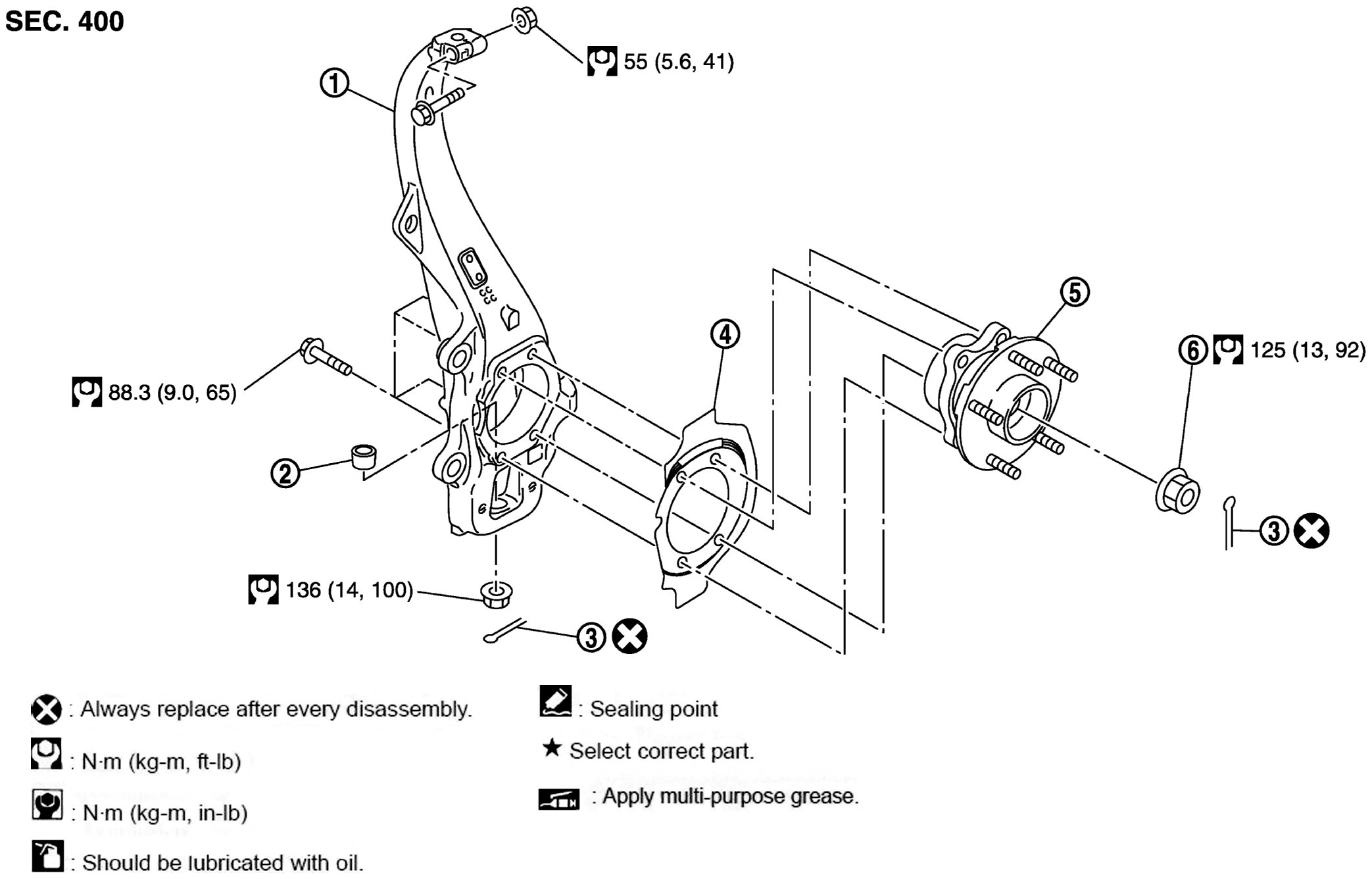

GNSJPDIF0221GB-221Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering knuckle 2. Ball seat 3. Cotter pin
4. Splash guard 5. Wheel hub and bearing assembly 6. Wheel hub lock nut
Refer to COMPONENTS for symbols in the illustration.
