Right Side

WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

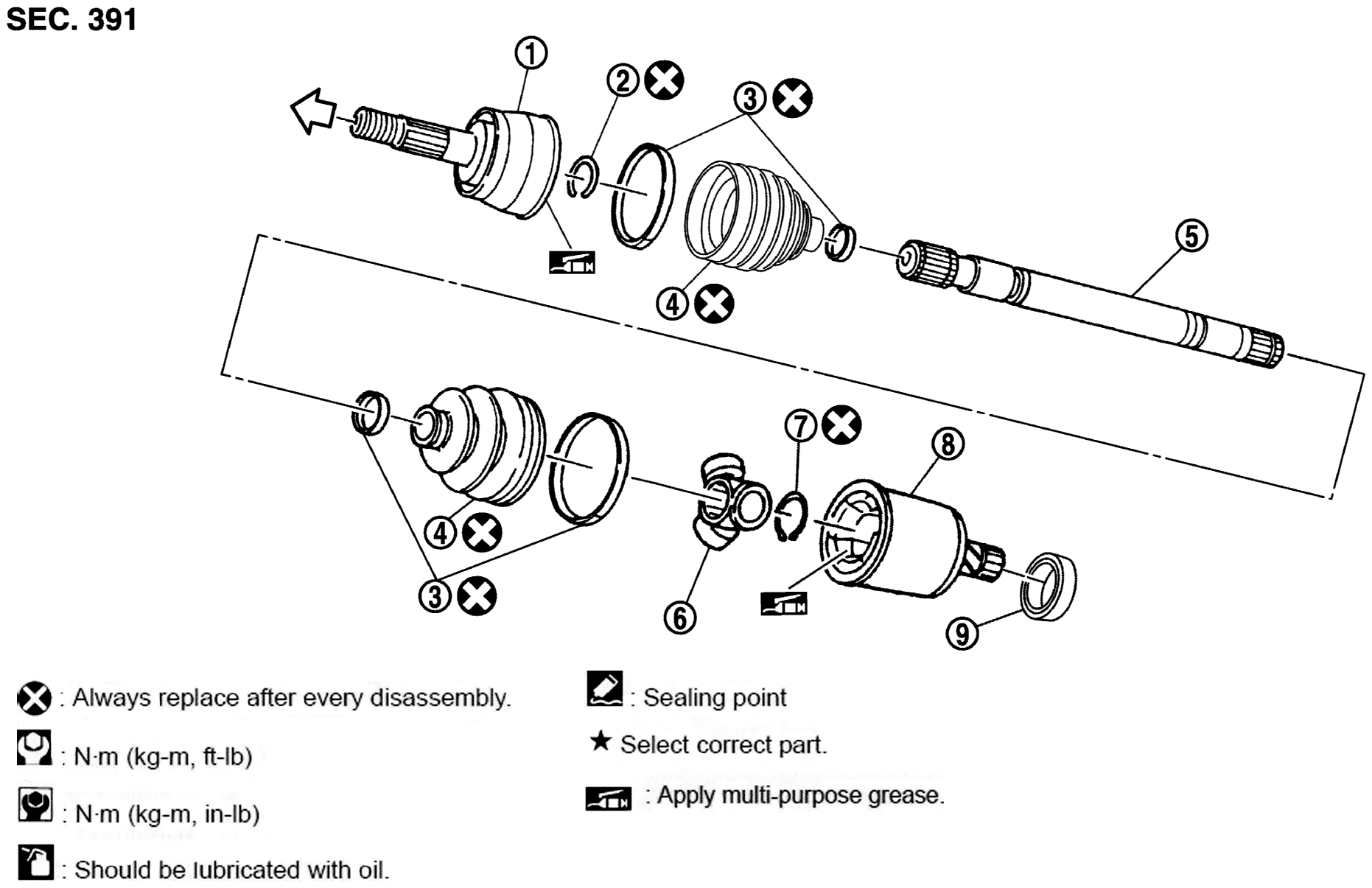

GNSJPDIF0169ZZ-169Courtesy of NISSAN NORTH AMERICA, INC.
1. Joint sub-assembly 2. Circular clip 3. Boot band
4. Boot 5. Shaft 6. Spider assembly
7. Snap ring 8. Housing 9. Dust shield
ARROW : Wheel side
GREASE : NISSAN genuine grease or an equivalent.
Refer to COMPONENTS for symbols not described on the above.
