With ICC
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

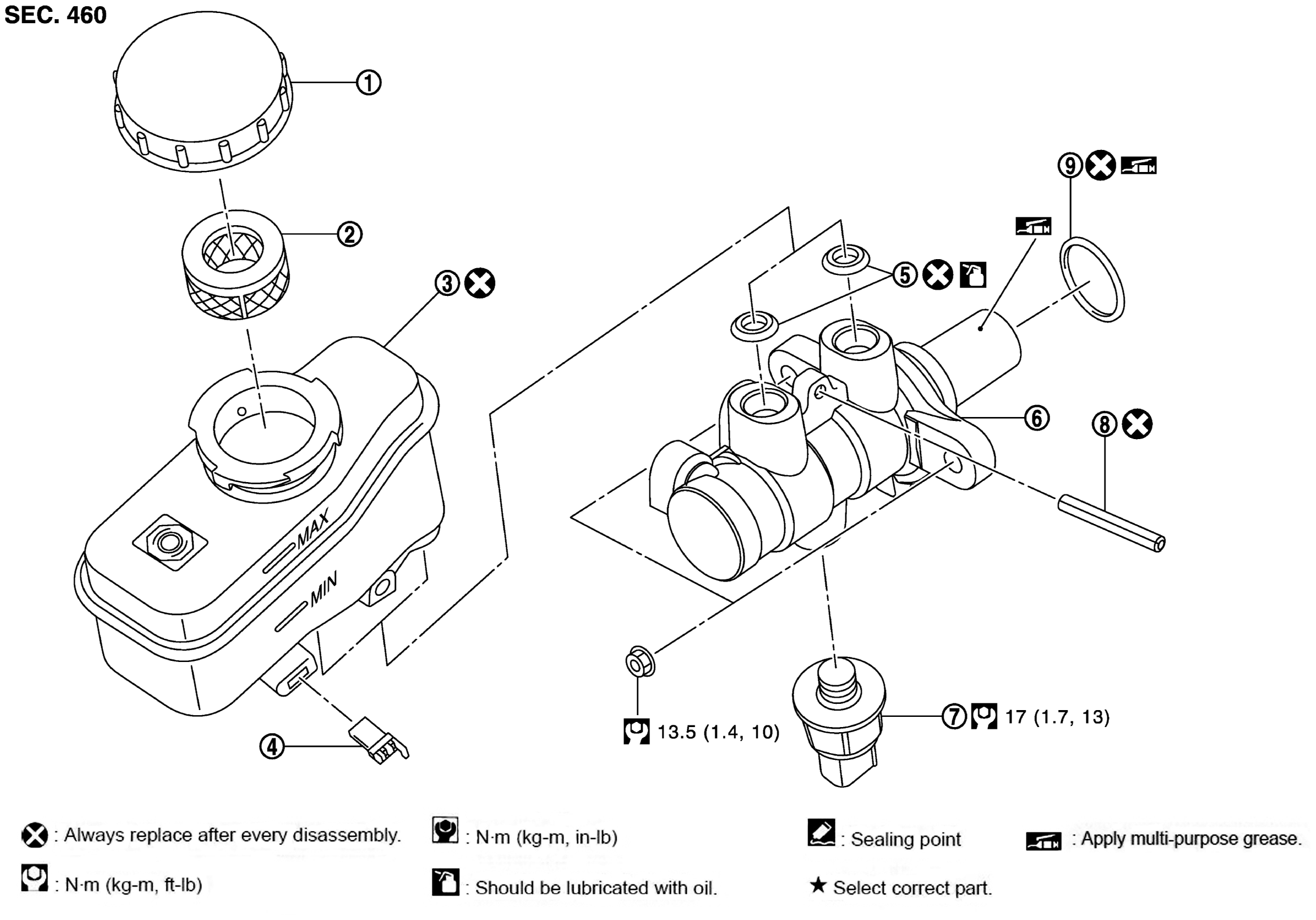

| 1. | Reservoir cap | 2. | Oil strainer | 3. | Reservoir tank |
| 4. | Brake fluid level switch connector | 5. | Grommet | 6. | Cylinder body |
| 7. | Pressure sensor | 8. | Pin | 9. | O-ring |
| Refer to COMPONENTS for symbols not described on the above. | |||||
