With ICC
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

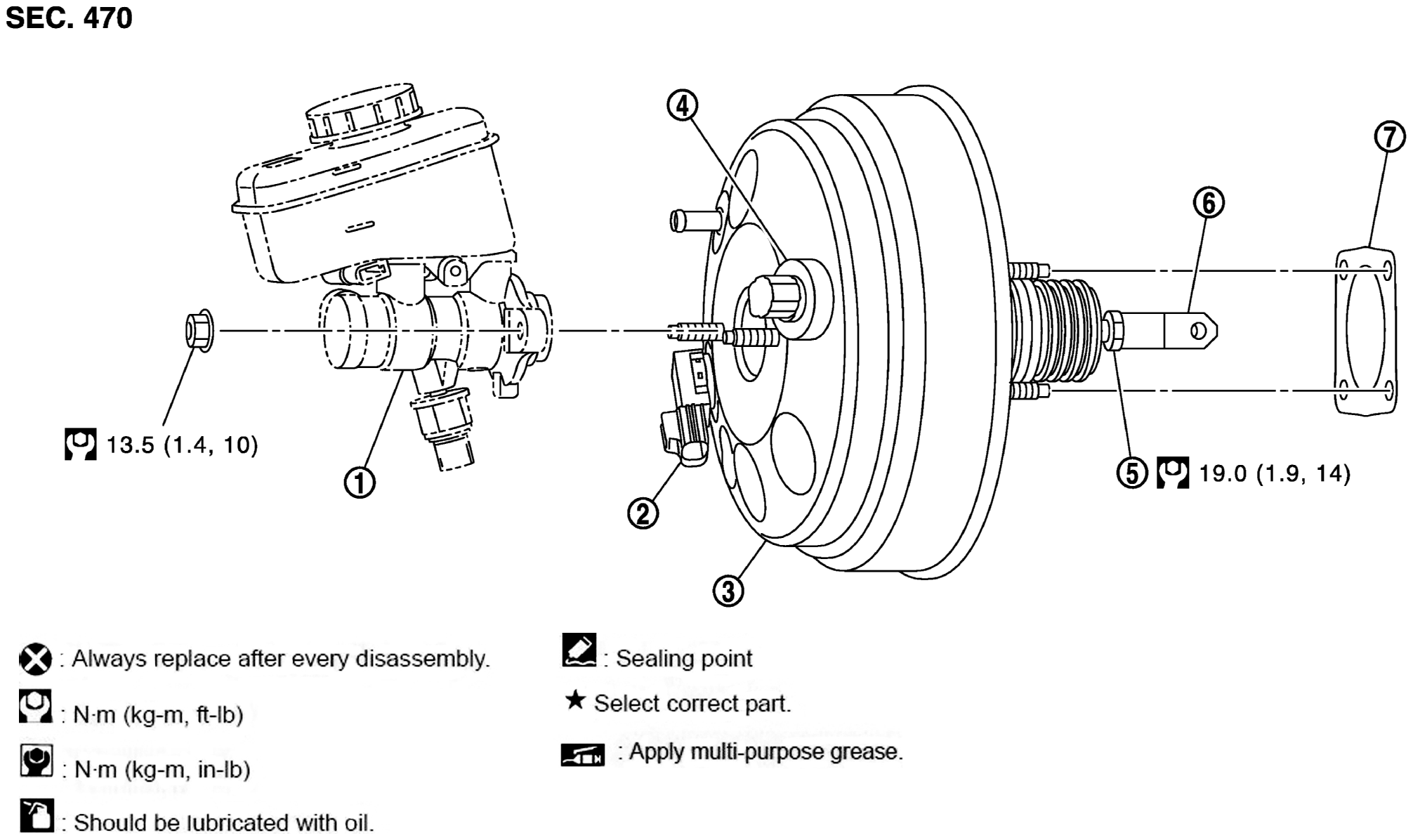

| 1. | Master cylinder assembly | 2. | Vacuum Sensor | 3. | Brake booster |
| 4. | Solenoid Valve | 5. | Lock nut | 6. | Clevis |
| 7. | Gasket | ||||
| Refer to COMPONENTS for symbols in the figure. | |||||
