Drive Pinion: Disassembly

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side shaft. Refer to DISASSEMBLY .
  2. Remove the differential assembly. Refer to DISASSEMBLY .

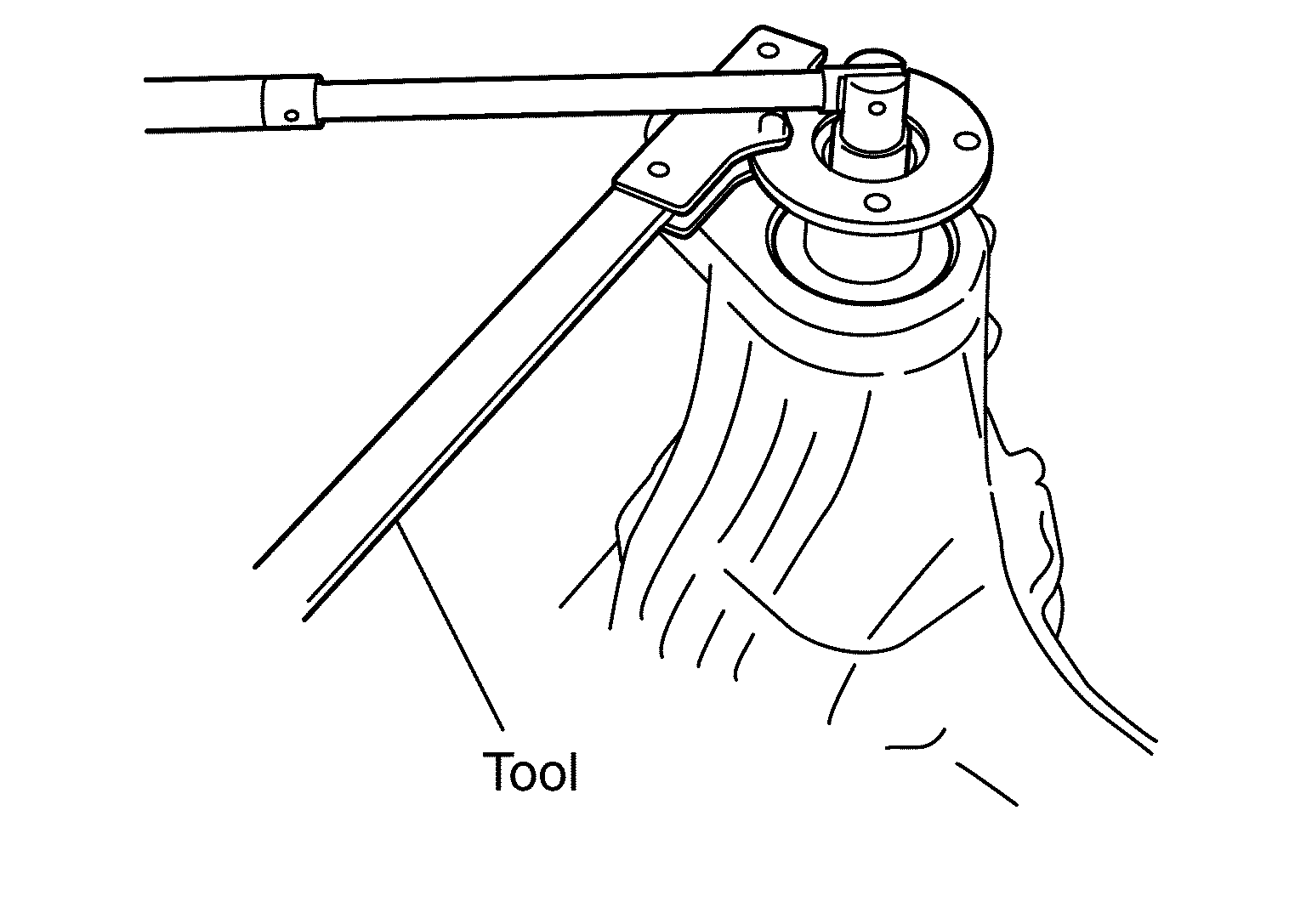

  3. Remove the drive pinion lock nut with a flange wrench (commercial service tool).
    G04149964Courtesy of NISSAN NORTH AMERICA, INC.
  4. Put matching mark (B) on the end of drive pinion. The matching mark should be in line with the matching mark (A) on companion flange (1).
    G04076251Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    For matching, marks use paint. Never damage companion flange and drive pinion.

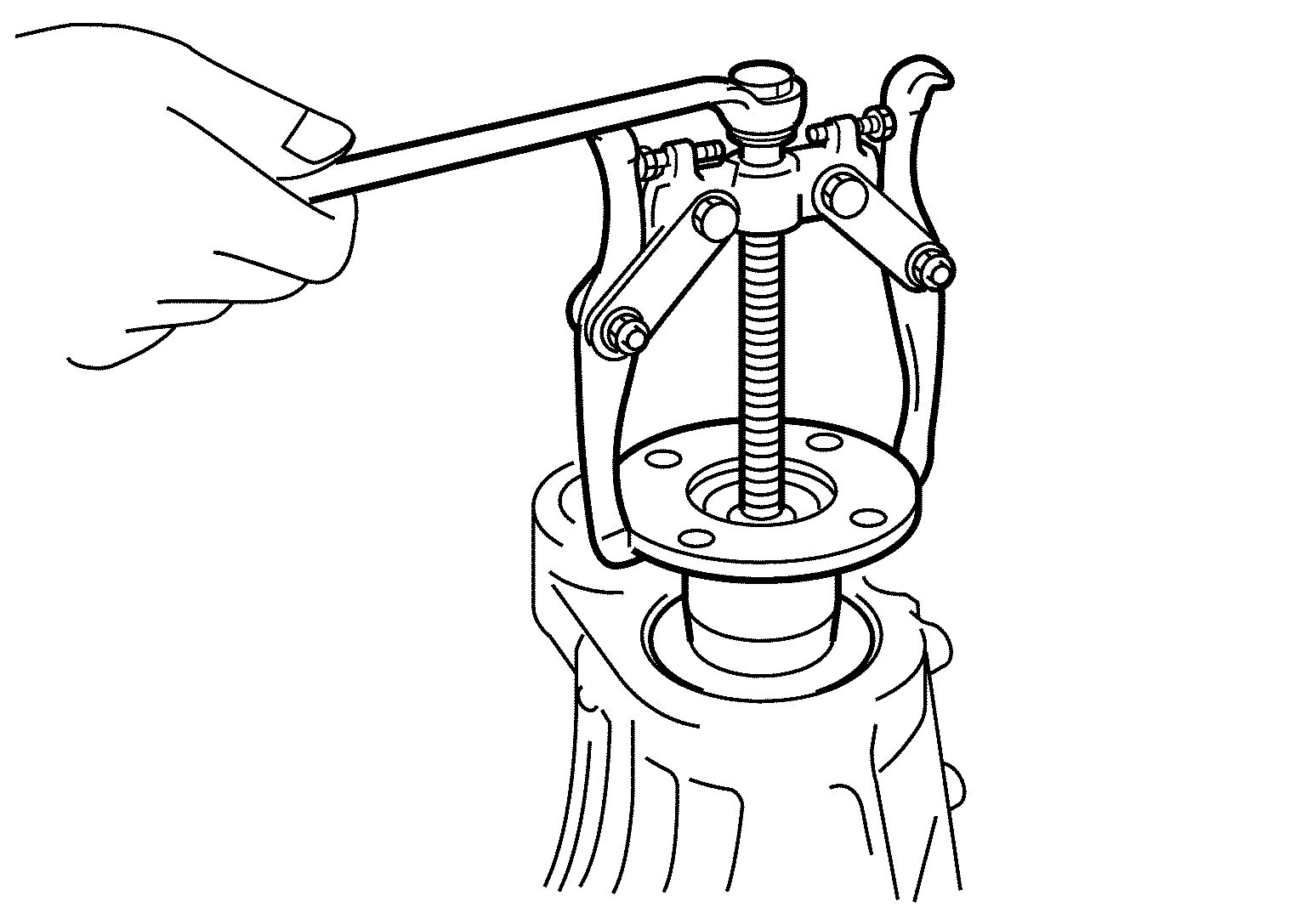

  5. Remove the companion flange with the puller (commercial service tool).
    G04149966Courtesy of NISSAN NORTH AMERICA, INC.

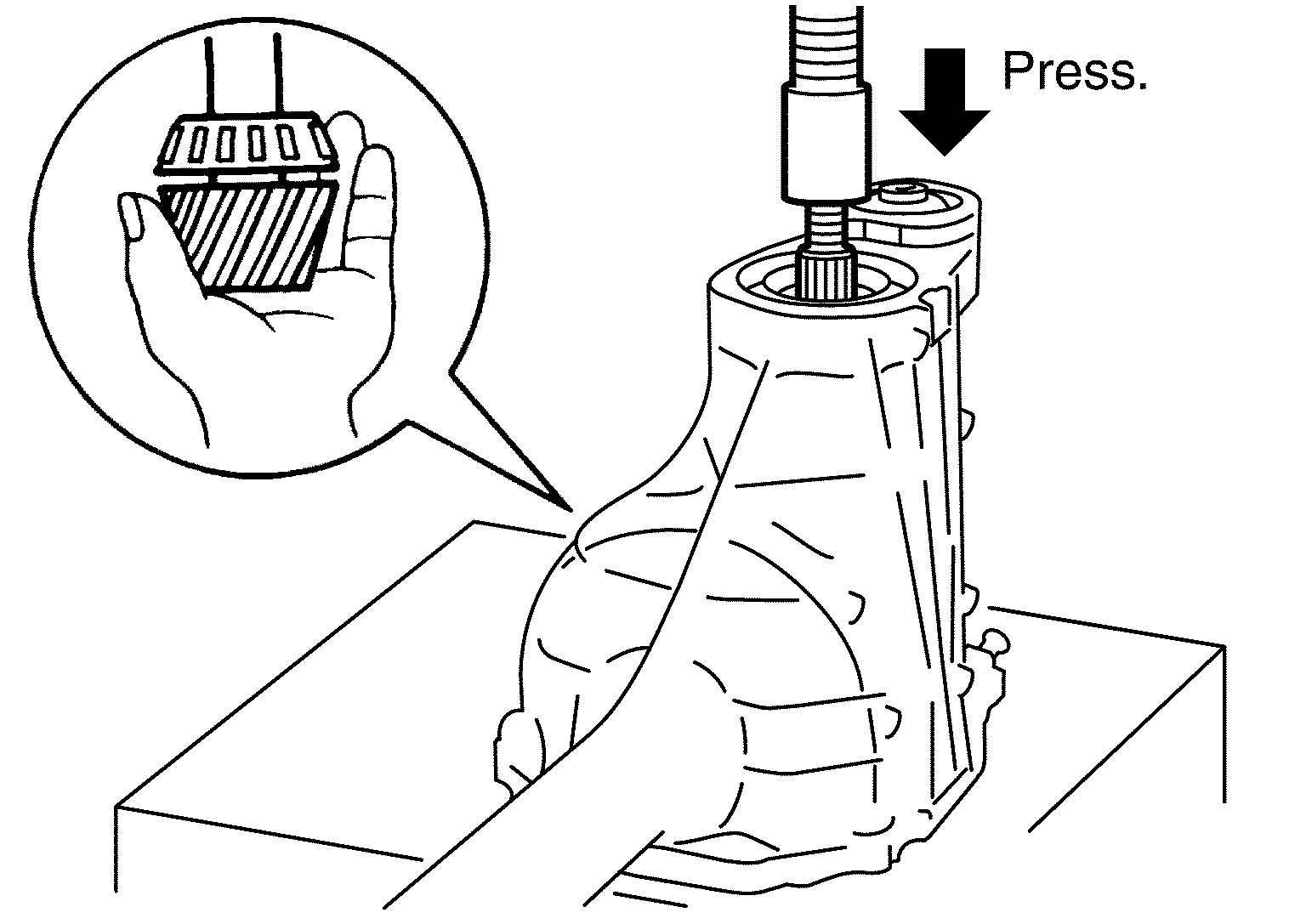

  6. Press the drive pinion assembly.
    G04149967Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Never drop drive pinion assembly.

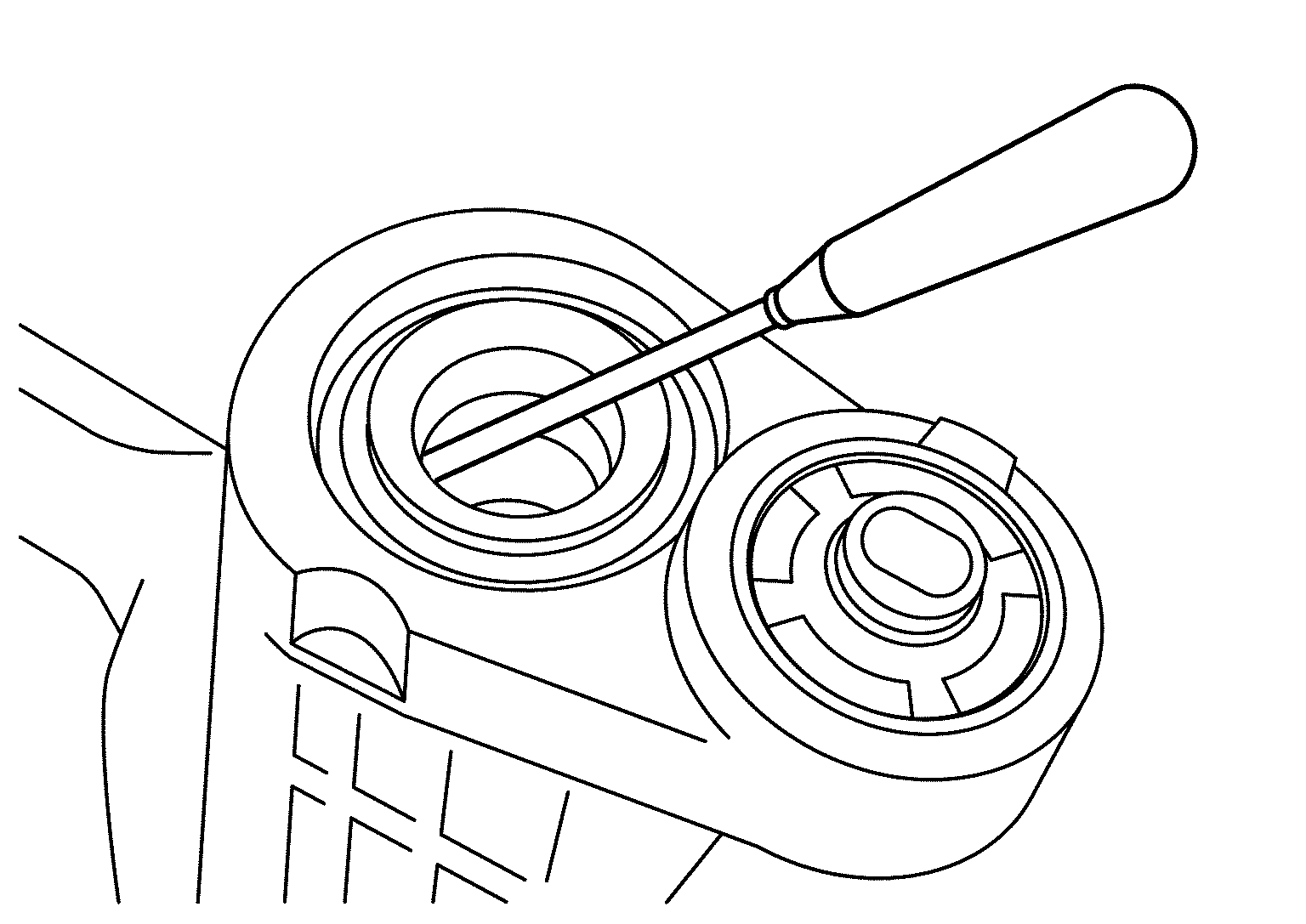

  7. Remove the front oil seal with a suitable tool.
    G04149969Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Never damage gear carrier.

  8. Remove the drive pinion front bearing inner race.
  9. Remove the collapsible spacer.

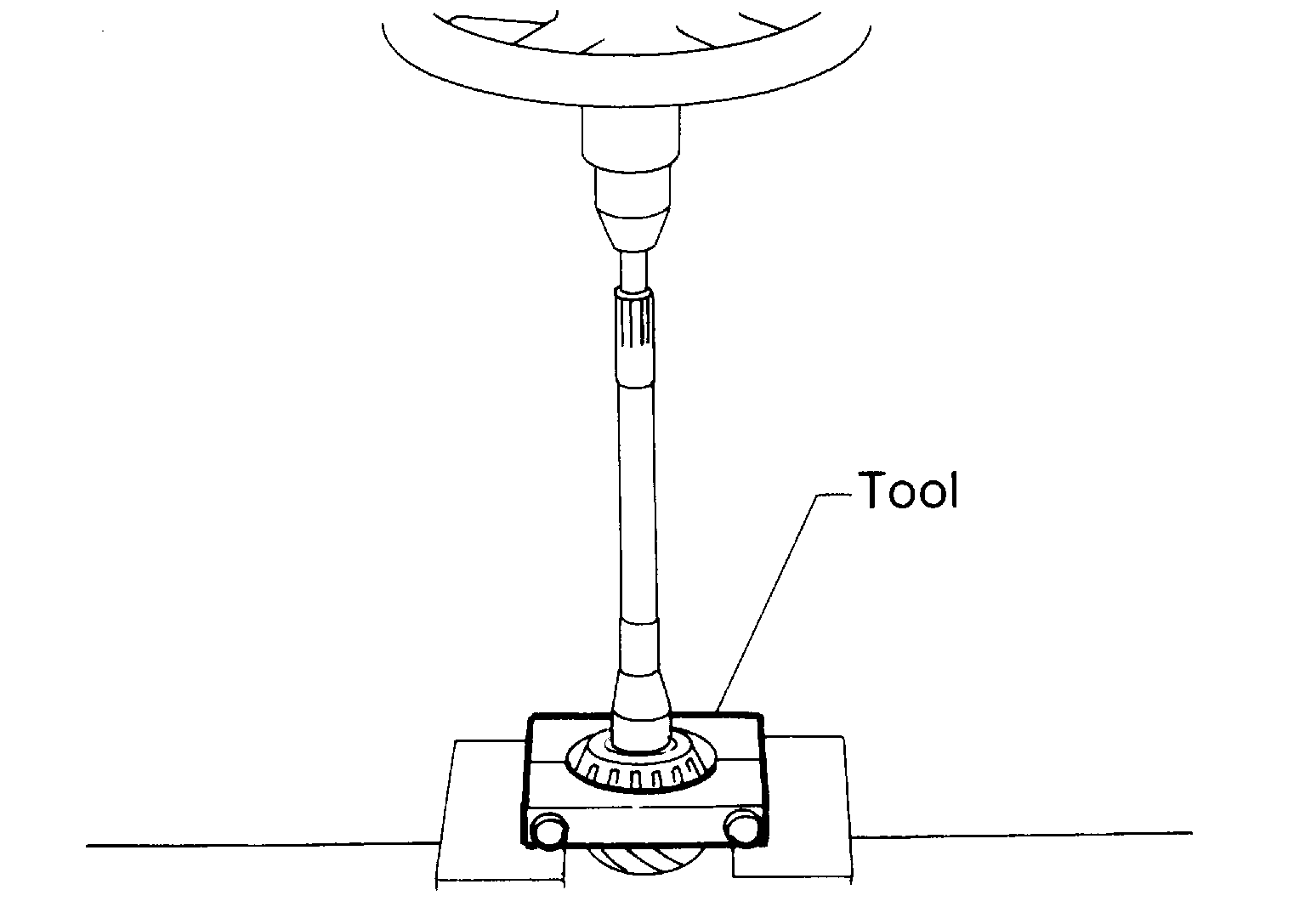

  10. Remove the drive pinion rear bearing inner race and drive pinion height adjusting washer with the replacer (commercial service tool).
    G04082125Courtesy of NISSAN NORTH AMERICA, INC.

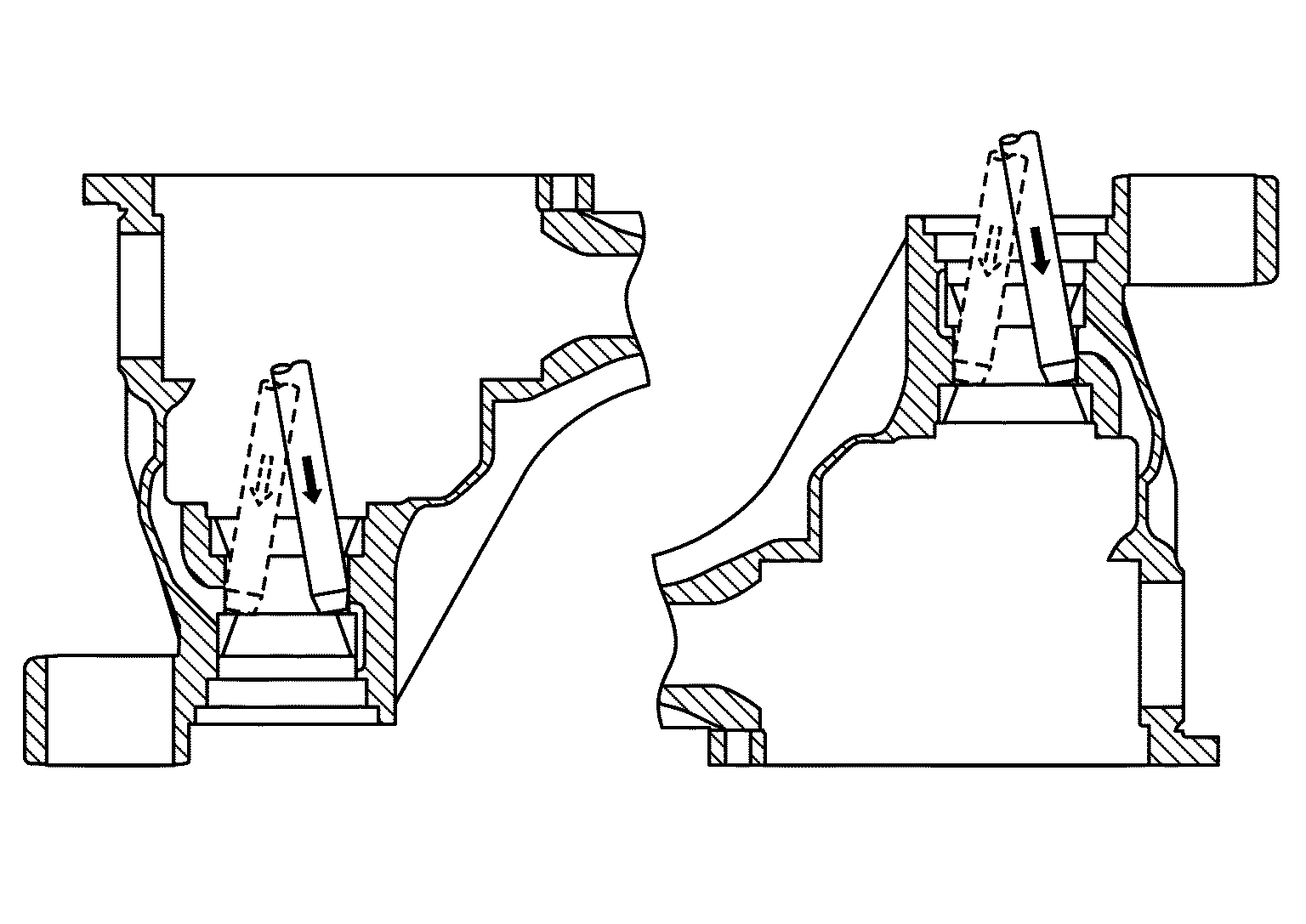

  11. Remove the drive pinion front and rear bearing outer races by tapping them uniformly with a suitable tool.
    G04149970Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Never damage gear carrier.

  12. Perform inspection after disassembly. Refer to INSPECTION .
