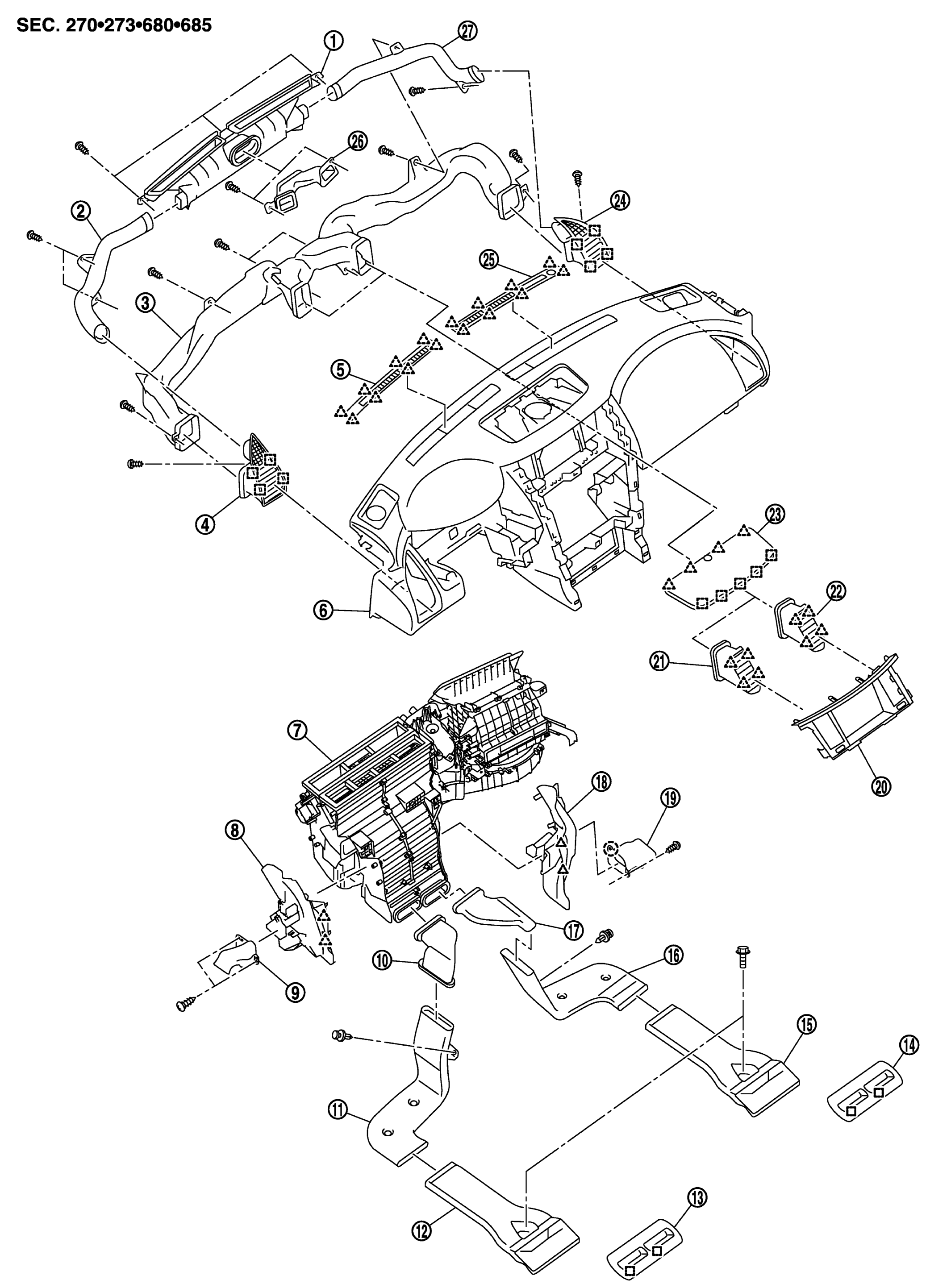

Exploded View With Torque Specifications: Front
WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Front defroster nozzle | 2. | Side defroster nozzle LH | 3. | Side ventilator duct |
| 4. | Side ventilator grille LH | 5. | Front defroster grille LH | 6. | Instrument panel |
| 7. | A/C unit assembly | 8. | Foot duct LH | 9. | Foot grille LH |
| 10. | Floor duct 1 LH | 11. | Floor duct 2 LH | 12. | Floor duct 3 LH |
| 13. | Floor grille LH | 14. | Floor grille RH | 15. | Floor duct 3 RH |
| 16. | Floor duct 2 RH | 17. | Floor duct 1 RH | 18. | Foot duct RH |
| 19. | Foot grill RH | 20. | Cluster lid D | 21. | Center ventilator grille LH |
| 22. | Center ventilator grille RH | 23. | Upper ventilator grille | 24. | Side ventilator grille LH |
| 25. | Front defroster grille RH | 26. | Upper ventilator duct | 27. | Side ventilator nozzle RH |
| : Clip | |||||
| : Pawl | |||||
| : Metal clip |
