Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|

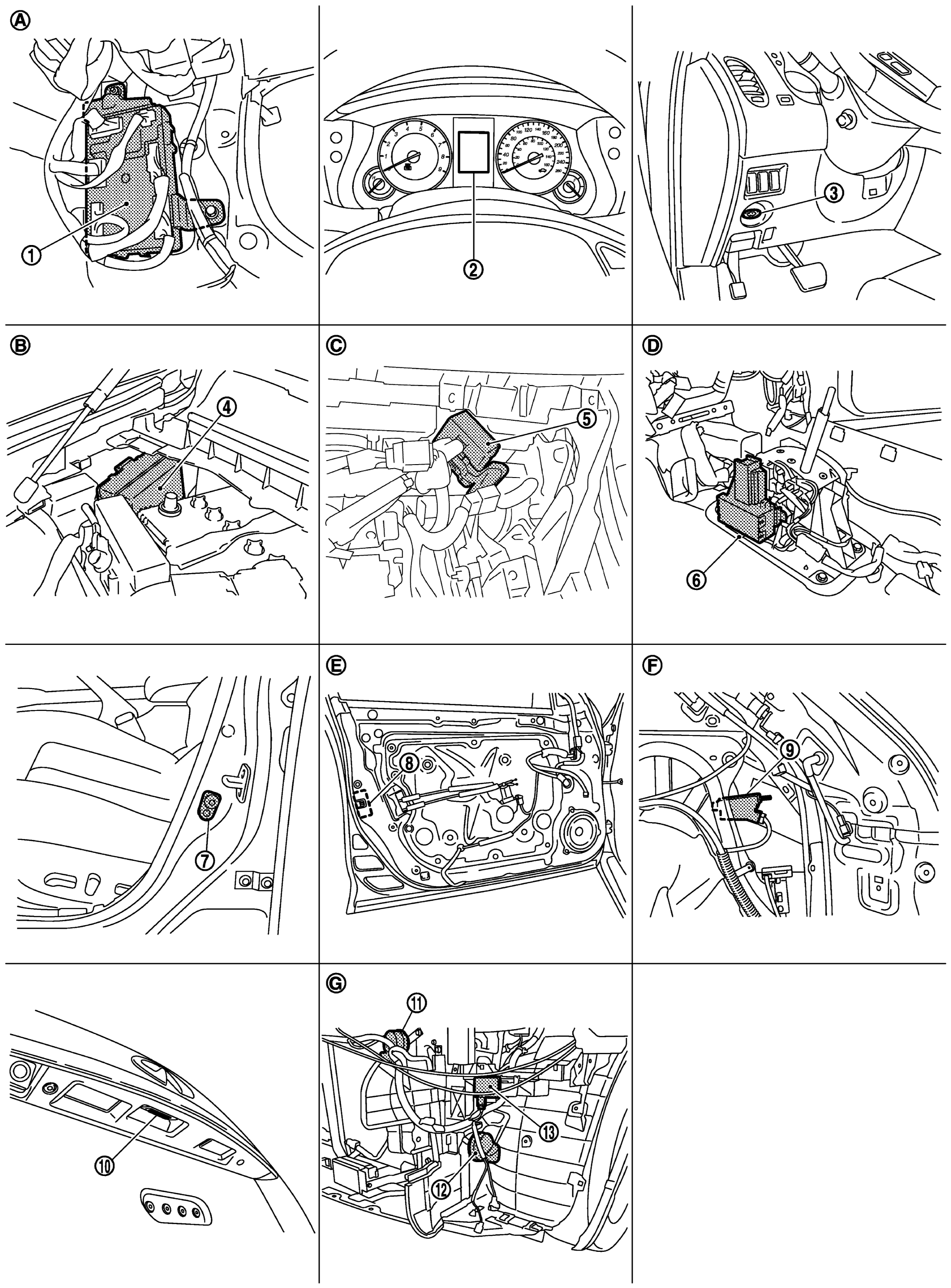

| 1. |
BCM |
2. |
Combination meter |
3. |
Key slot |
| 4. |
IPDM E/R |
5. |
Remote key less entry receiver |
6. |
A/T shift selector (detention switch) |
| 7. |
Front door switch (driver side) |
8. |
Front door lock assembly (driver side) |
9. |
Fuel lid lock actuator |
| 10. |
Back door opener switch |
11. |
Horn (high) |
12. |
Horn (low) |
| 13. |
Intelligent Key warning buzzer |
|
|
|
|
| A. |
Dash side lower (passenger side) |
B. |
Engine room dash panel (RH) |
C. |
Behind the instrument lower panel (driver side) |
| D. |
View with center console assembly removed |
E. |
View with front door finisher (LH) is removed |
F. |
View luggage side finisher lower (RH) is removed |
| G. |
View with front bumper is removed |
|
|
|
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|

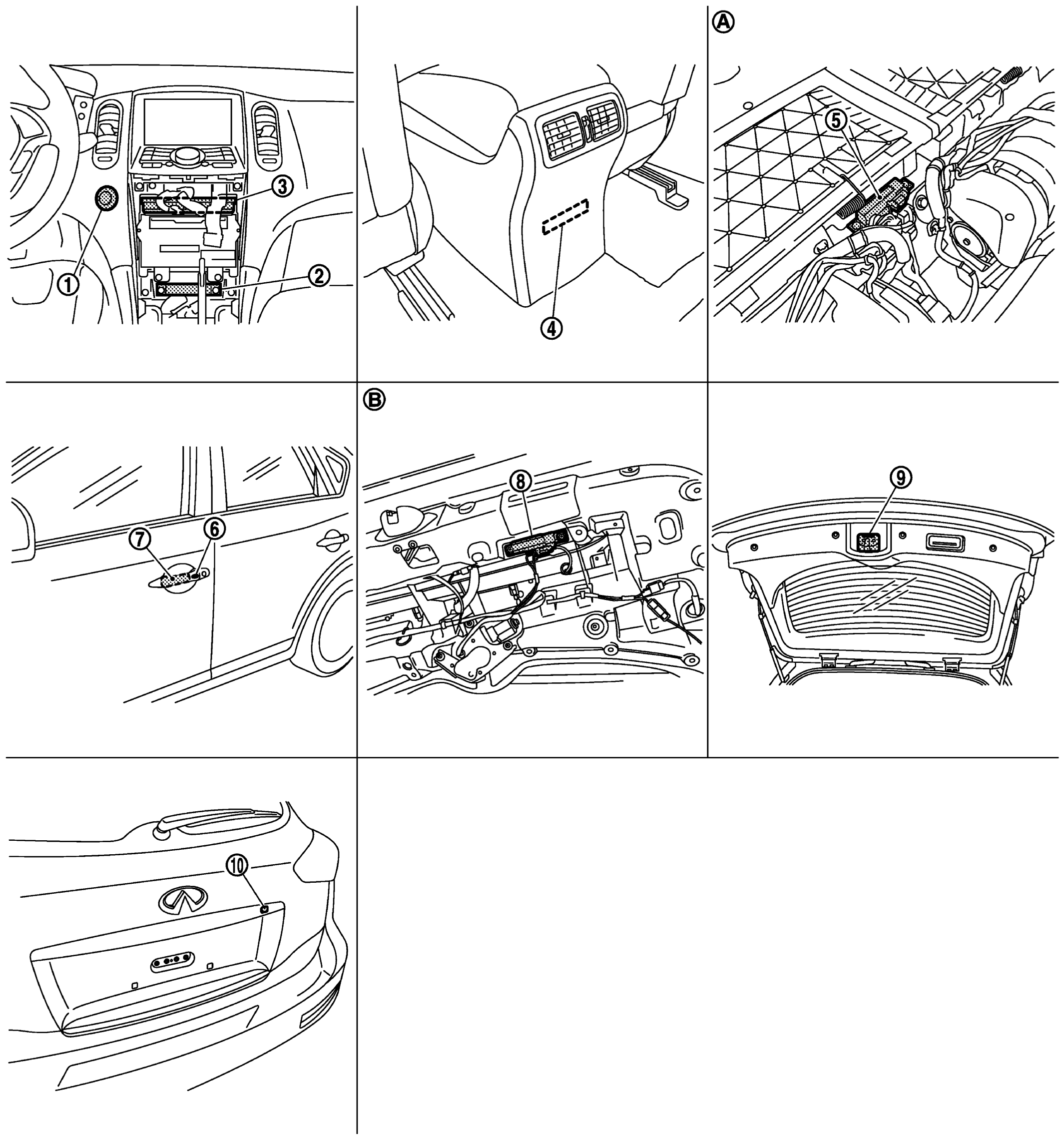

| 1. |
Push-button ignition switch (push switch) |
2. |
Inside key antenna (instrument center) |
3. |
Unified meter and A/C amp. |
| 4. |
Inside key antenna (console) |
5. |
Inside key antenna (luggage room) |
6. |
Front outside handle LH (request switch) |
| 7. |
Front outside handle LH (outside key antenna) |
8. |
Outside key antenna (back door) |
9. |
Back door lock assembly |
| 10. |
Back door request switch |
|
|
|
|
| A. |
View with luggage floor finisher front is removed |
B. |
View with back door finisher inner is removed |
|
|
