Exploded View

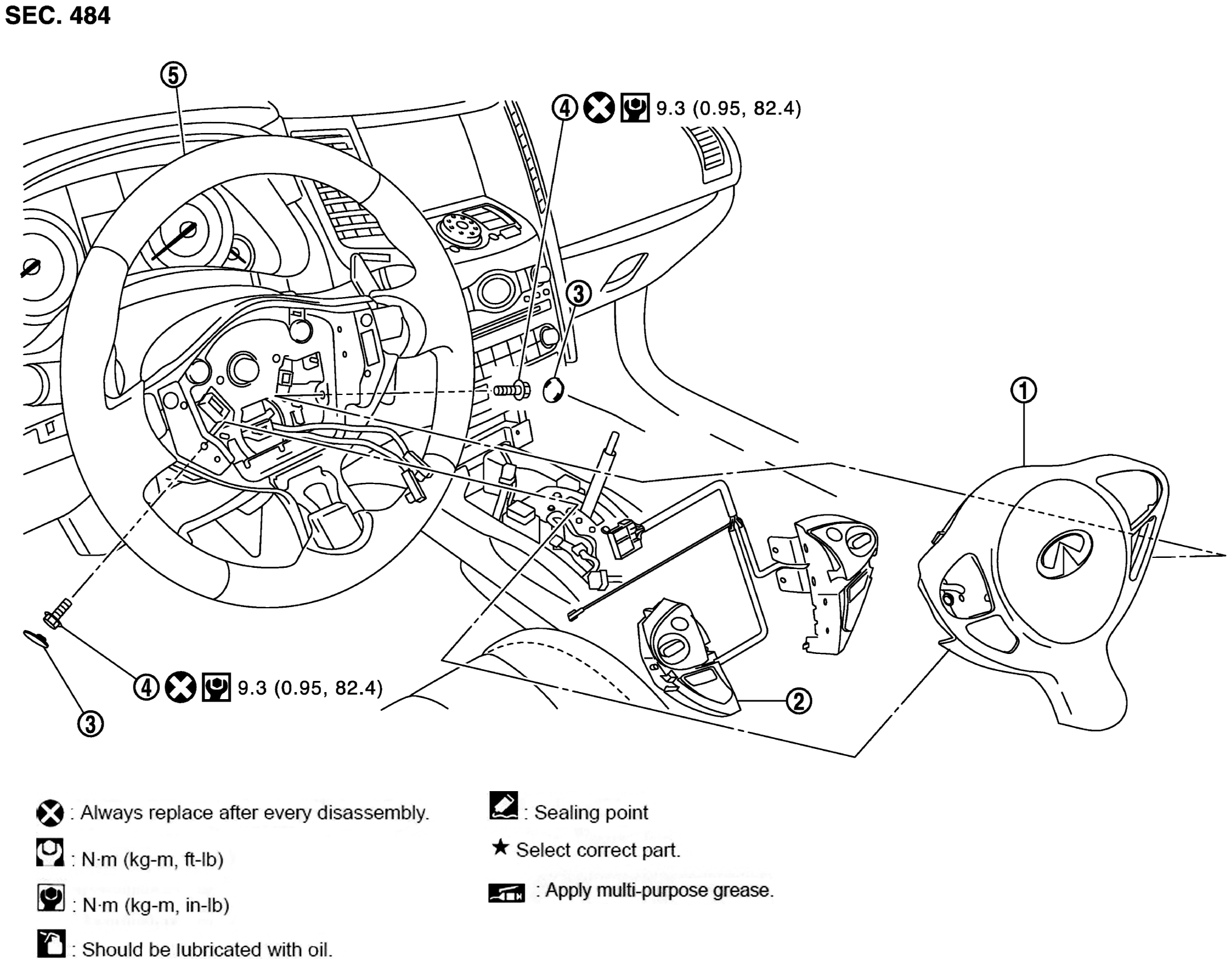

GNSJMHIA0652GB-652Courtesy of NISSAN NORTH AMERICA, INC.
1. Driver Air Bag Module 2. Steering Switch 3. Side Lid LH and RH
4. TORX Bolt LH and RH 5. Steering Wheel
DISAS : Always replace after every disassembly.
BOLTIN : N•m (kg - m, in - lb)
