COMPRESSOR Connector End View (F44)

Connector Types:  RK02FGY

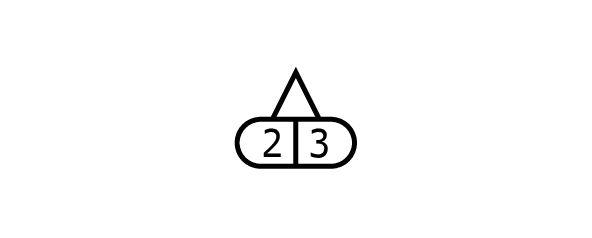

Fig 1: Terminal-side
GNSW34461Courtesy of NISSAN NORTH AMERICA

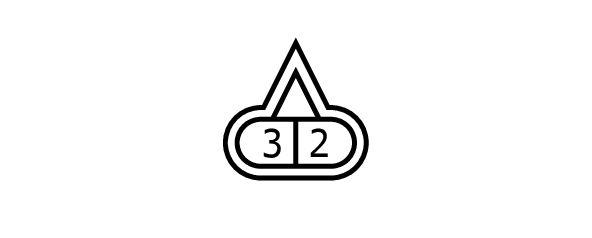

Fig 2: Harness-side
GNSW35127Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
2 Y -
3 O -
