COMPRESSOR Connector End View (F43)

Connector Types:  RS01FB

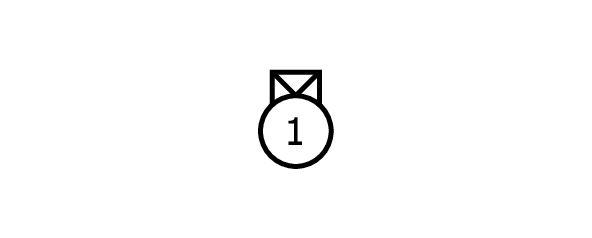

Fig 1: Terminal-side
GNSW34491Courtesy of NISSAN NORTH AMERICA

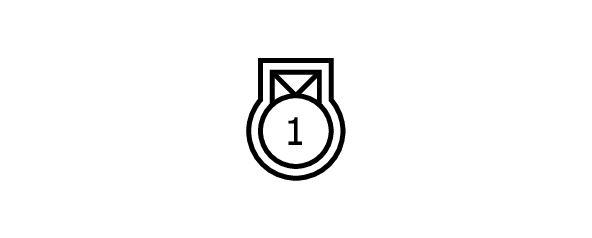

Fig 2: Harness-side
GNSW34821Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
1 L - [With VQ engine]
1 Y - [With VK engine]
