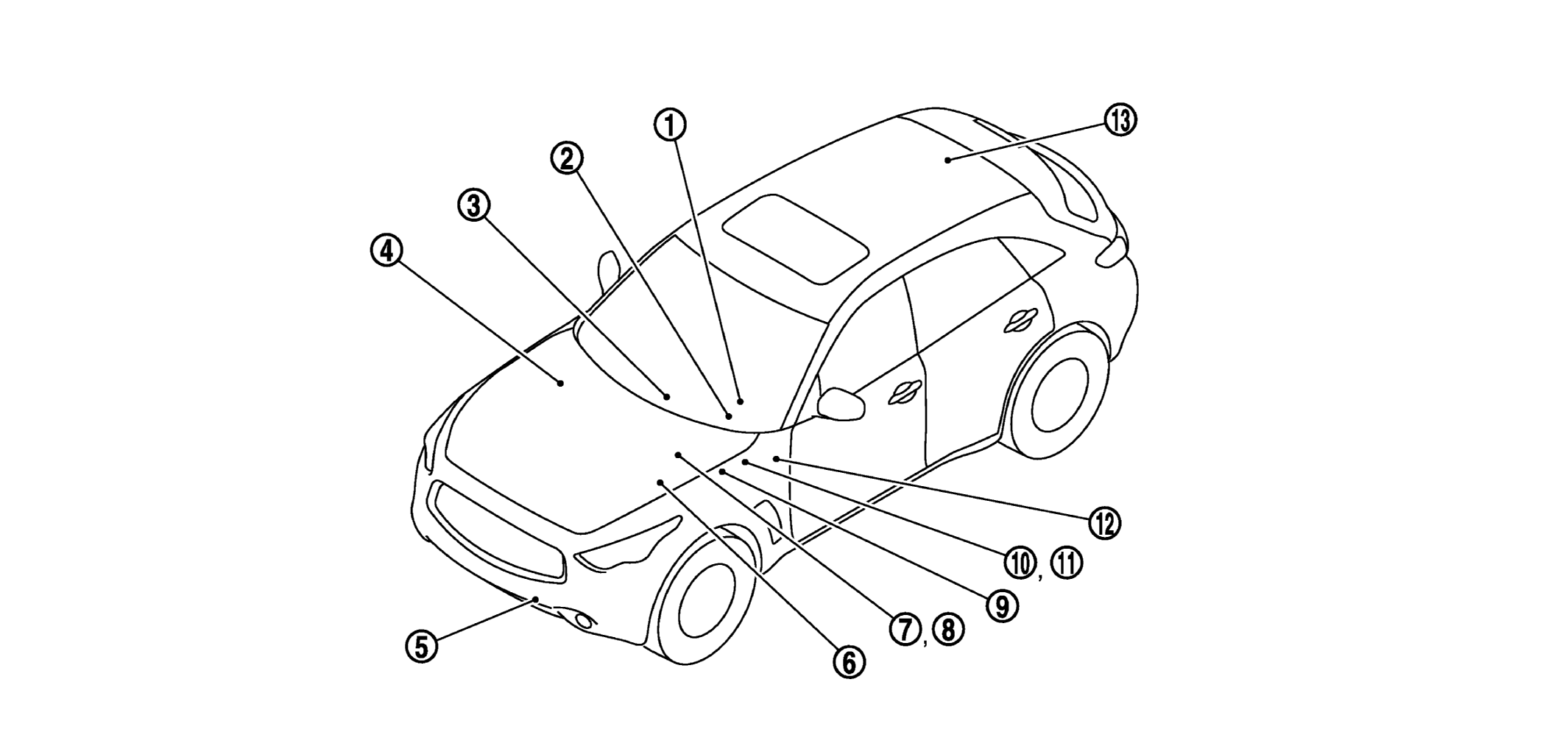

Component Location
| 1. | ICC Steering Switch | 2. | Information Display, ICC System Warning Lamp (On The Combination Meter) |
3. | AV Control Unit Refer to COMPONENT LOCATION . |
| 4. | ECM Refer to COMPONENT LOCATION . |
5. | ICC Sensor Integrated Unit Refer to COMPONENT LOCATION . |
6. | ICC Brake Hold Relay Refer to COMPONENT LOCATION . |
| 7. | Booster Solenoid/ Release Switch Refer to COMPONENT LOCATION . |
8. | Brake Pressure Sensor Refer to COMPONENT LOCATION . |
9. | Accelerator Pedal Actuator (Accelerator Pedal Assembly) |
| 10. | Stop Lamp Switch Refer to COMPONENT LOCATION . |
11. | ICC Brake Switch Refer to COMPONENT LOCATION . |
12. | ICC Warning Chime Refer to COMPONENT LOCATION . |
| 13. | Brake Booster Control Unit Refer to COMPONENT LOCATION . |
