Engine Oil Temperature Sensor Connector End View (F38)

Connector Types:  E02FGY-RS

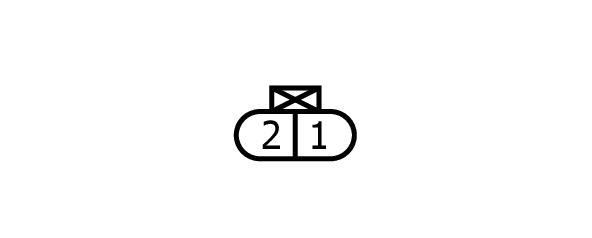

Fig 1: Terminal-side
GNSW27545Courtesy of NISSAN NORTH AMERICA

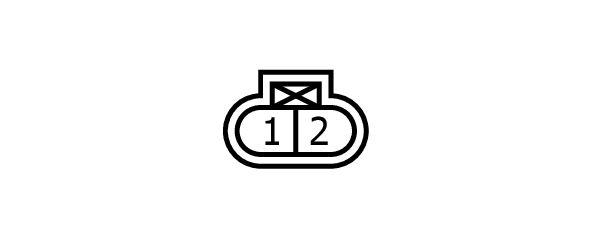

Fig 2: Harness-side
GNSW27763Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
1 G -
2 B -
