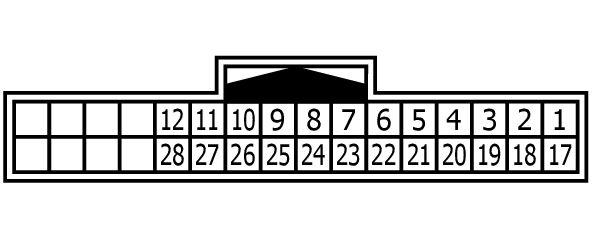

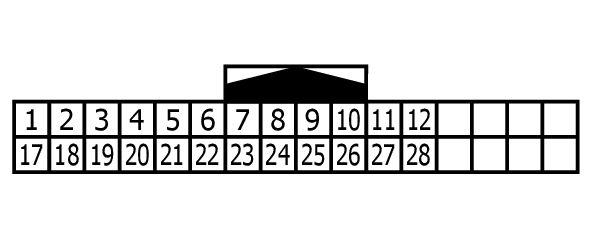

Driver Seat Control Unit Connector End View (B451)
Connector Types: TH32HW
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | - | CAN-H |
| 2 | - | UART?(TX/RX) |
| 3 | - | - |
| 4 | - | PULSE (RECLINER) |
| 5 | - | PULSE(TELESCOPIC) |
| 6 | - | ADDRESS 2 |
| 7 | - | IND 2 |
| 8 | - | SLIDE SW (BACKWARD) |
| 9 | - | RECLINER SW (BACKWARD) |
| 10 | - | FRONT LIFTER SW (DOWNWARD) |
| 11 | - | REAR LIFTER SW (DOWNWARD) |
| 12 | - | POWER SUPPLY (ENCODER) |
| 17 | - | CAN-L |
| 18 | - | PULSE (SLIDE) |
| 19 | - | PULSE (FRONT LIFTER) |
| 20 | - | PULSE (REAR LIFTER) |
| 21 | - | PULSE(TILT) |
| 22 | - | ADDRESS 1 |
| 23 | - | IND 1 |
| 24 | - | SLIDE SW (FORWARD) |
| 25 | - | RECLINER SW (FORWARD) |
| 26 | - | FRONT LIFTER SW (UPWARD) |
| 27 | - | REAR LIFTER SW (UPWARD) |
| 28 | - | SET SW |
