Diode Connector End View (M9)

Connector Types:  24335_C9900

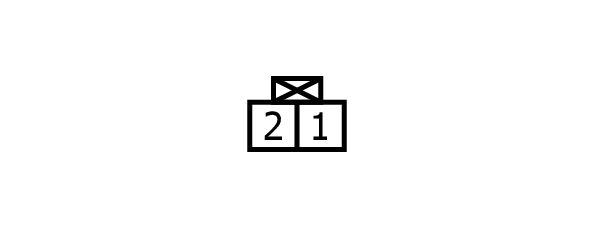

Fig 1: Terminal-side
GNSW27742Courtesy of NISSAN NORTH AMERICA

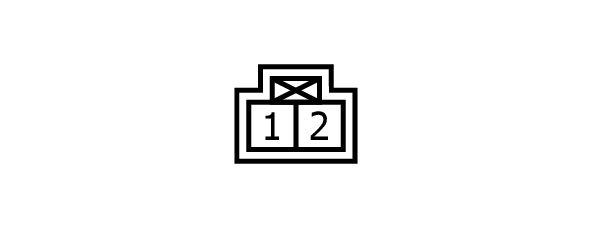

Fig 2: Harness-side
GNSW27542Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
1 R -
2 W -
