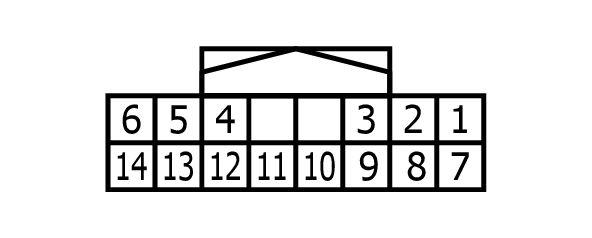

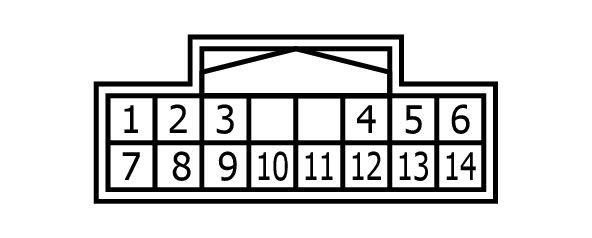

Combination Switch Connector End View (M33)
Connector Types:
TH16FW-NH
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
P |
FR WASHER(-) |
| 2 |
SB |
OUTPUT 4 |
| 3 |
GR |
FR WASHER(+) |
| 4 |
G |
IGN |
| 5 |
L |
OUTPUT 3 |
| 6 |
B |
GROUND |
| 7 |
V |
INPUT 3 |
| 8 |
BG |
OUTPUT 5 |
| 9 |
Y |
INPUT 2 |
| 10 |
R |
INPUT 4 |
| 11 |
LG |
INPUT 1 |
| 12 |
P |
OUTPUT 1 |
| 13 |
BR |
INPUT 5 |
| 14 |
G |
OUTPUT 2 |
