Left Side

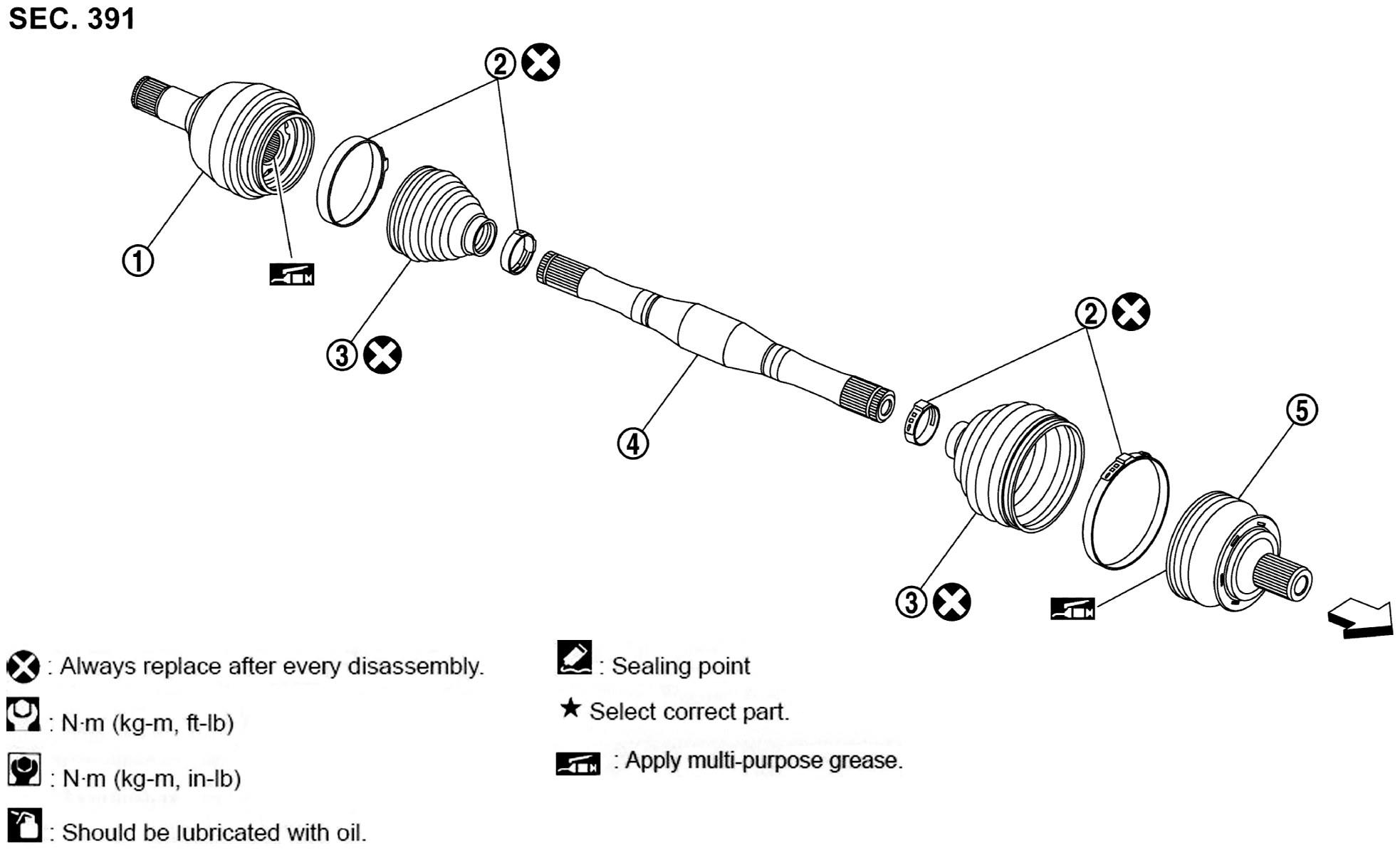

GNSJSDIA8701ZZ-701Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Housing assembly WHITE-2 Boot band WHITE-3 Boot
WHITE-4 Shaft WHITE-5 Joint sub-assembly
ARROW : Wheel side
GREASE : Fill NISSAN Genuine grease or equivalent.
DISAS : Always replace after every disassembly.
